| Quantity: | |
|---|---|
MODLE | PRESSURE | AT-7.5 | AT-11 | AT-15 | AT-22 | AT-30 | AT-37 | AT-45 | AT-55 | AT-75 | AT-90 | AT-110 | AT-132 | AT-160 | AT-185 | AT-220 | AT-250 | ||
Compressor | Free Air Delivery (m³/min) | 0.8Mpa | 0.9 | 1.71 | 2.27 | 3.3 | 5 | 6.05 | 7.1 | 9.25 | 12 | 15 | 18.9 | 21.7 | 27.2 | 29.4 | 42 | 43.91 | |
1.0Mpa | 0.85 | 1.06 | 1.64 | 2.77 | 3.25 | 4.9 | 5.9 | 7 | 9.14 | 11.58 | 14.3 | 18.75 | 21.5 | 29.2 | 41.5 | // | |||
1.2Mpa | 0.84 | 1.04 | 1.63 | 2.6 | 3.1 | 4.7 | 5.7 | 6.7 | 8.9 | 11.4 | 14.5 | 18.58 | 21.3 | 26.53 | // | // | |||
Outlet pipe diameter (inch) | G3/4 | G1 | G1 | G1 | G11/2 | G11/2 | G11/2 | G2 | G2 | G2 | G21/2 | G21/2 | G21/2 | DN100 | DN125 | DN125 | |||
Lubrucant Requirement(L) | 4 | 10 | 16 | 22 | 48 | 65 | 72 | 90 | 125 | 150 | |||||||||
Motor | Power(KW) | 7.5 | 11 | 15 | 22 | 30 | 37 | 45 | 55 | 75 | 90 | 110 | 132 | 160 | 185 | 220 | 250 | ||
Voltage | 380V/50Hz | ||||||||||||||||||
Driven Mode | Direct Drive | ||||||||||||||||||
Starting method | Y-△start | ||||||||||||||||||
Noise(db) | 68±2 | 70±2 | 72±2 | 74±2 | 80±2 | 85±2 | 88±2 | ||||||||||||
Weight (kg) | 205 | 270 | 290 | 420 | 580 | 630 | 715 | 1130 | 1230 | 1600 | 2000 | 2100 | 2800 | 3100 | 3300 | 3500 | |||
External Dimension | Length (mm) | 950 | 1050 | 1050 | 1300 | 1500 | 1500 | 1500 | 1600 | 1900 | 1900 | 2300 | 2300 | 2500 | 2500 | 23900 | 3900 | ||
Width(mm) | 670 | 700 | 700 | 850 | 1000 | 1000 | 1000 | 1250 | 1250 | 1250 | 1470 | 1470 | 1470 | 1470 | 2100 | 2100 | |||
Height(mm) | 950 | 1125 | 1125 | 1160 | 1300 | 1300 | 1300 | 1550 | 1550 | 1605 | 1840 | 1840 | 1840 | 1840 | 2280 | 2280 | |||

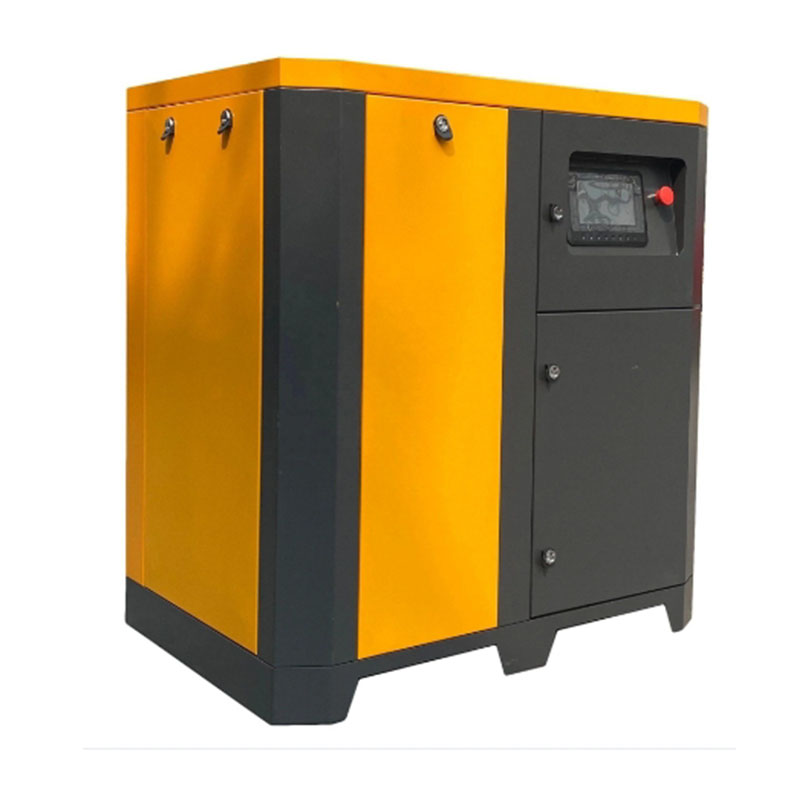

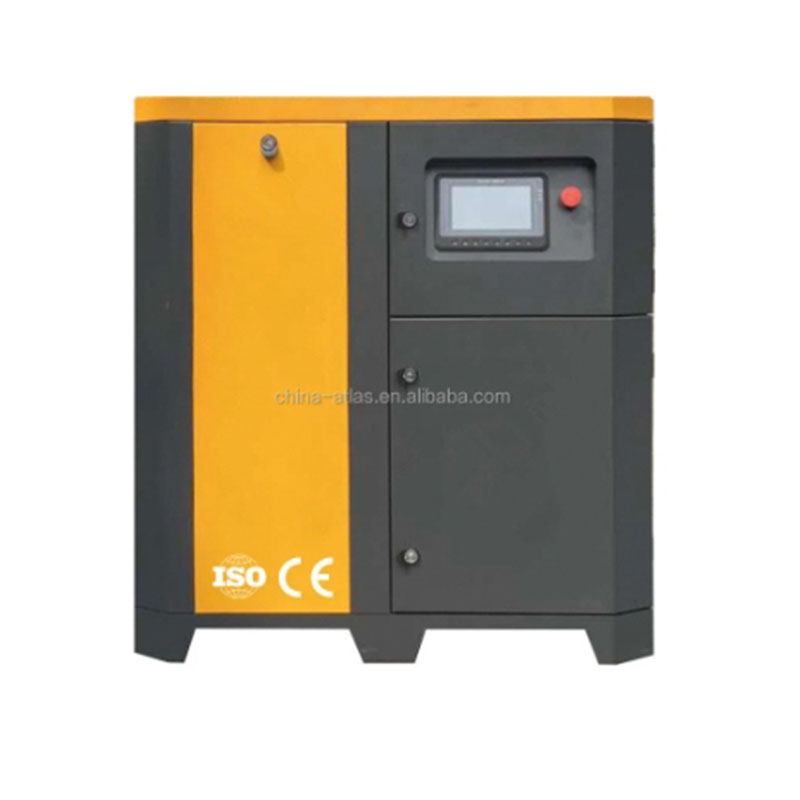

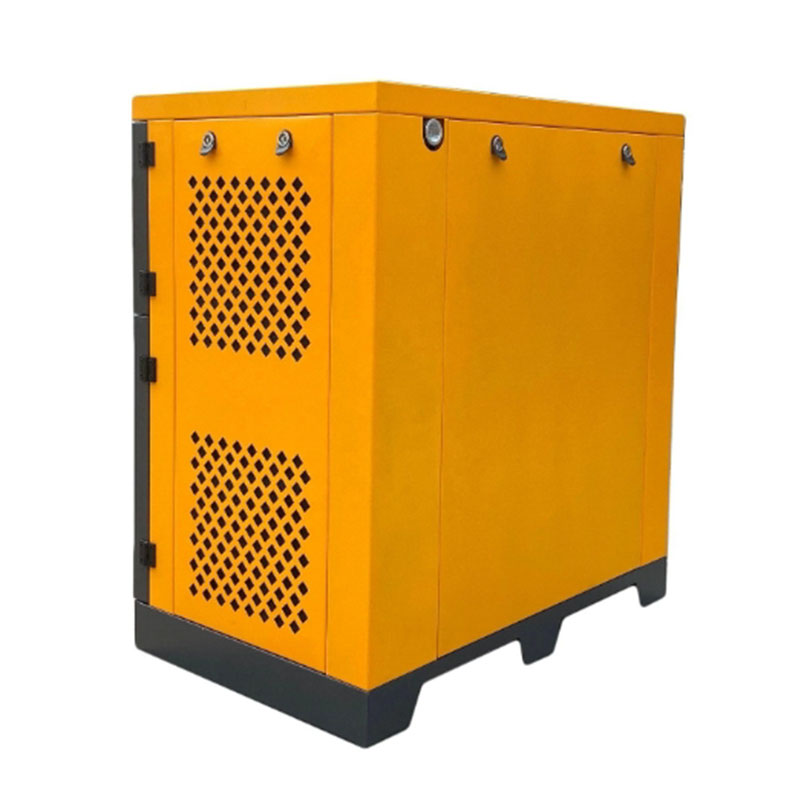

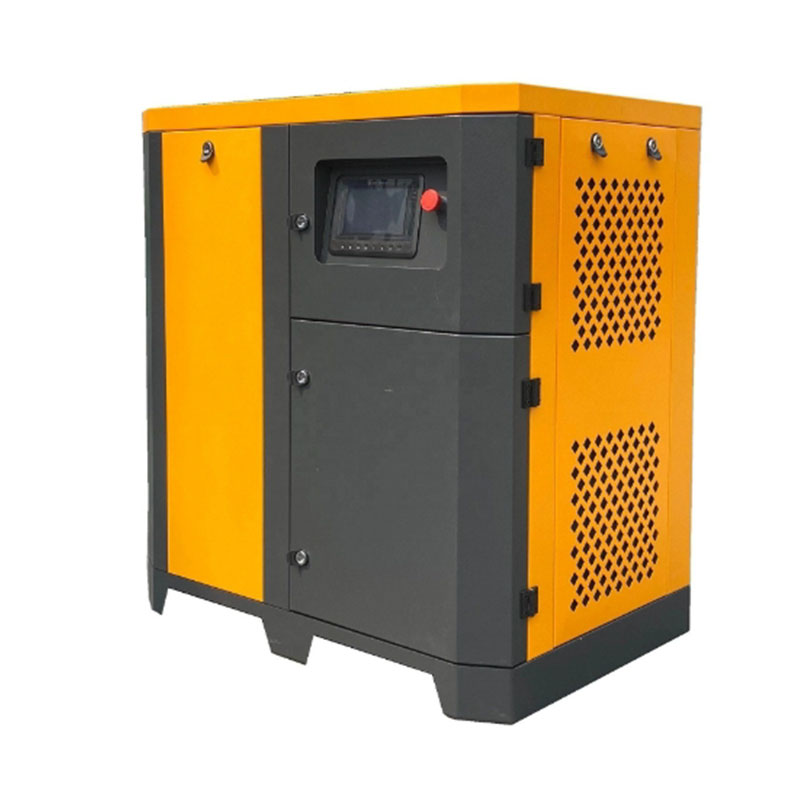

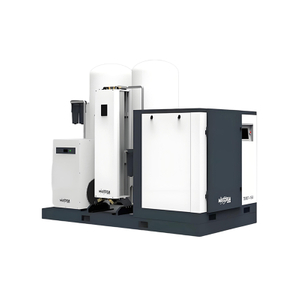

The TGA series fixed speed electric stationary screw air compressor is designed for stable, long-term air supply in industrial scenarios, targeting small and medium-sized factories, automated production lines, and spraying workshops. As a fixed-speed model, it operates at a constant rotational speed, ensuring consistent air pressure (0.8-1.2 MPa) and flow (0.85-43.91 m³/min) — ideal for applications where air demand rarely fluctuates. With 16 models (AT-7.5 to AT-250) covering motor power from 7.5 kW to 250 kW, it balances energy efficiency, stability, and cost-effectiveness, becoming a “reliable backbone” for industrial air systems.
Workshops producing hardware, auto parts, or plastic products often require continuous air for pneumatic tools (e.g., grinders, riveters) and injection molding machines. The TGA series’ direct-drive transmission reduces mechanical losses (efficiency ≥95%), ensuring 24/7 operation without frequent maintenance. Its 68-88 dB noise level (with multi-layer noise reduction) avoids disrupting workshop operations, complying with industrial noise standards.
Automated lines (e.g., electronic component assembly, automotive chassis assembly) demand precise air pressure to prevent equipment jams. The TGA series uses Y-△ starting to avoid voltage fluctuations during startup, protecting sensitive automation controllers. Its efficient cooling system (with aluminum alloy radiators) maintains stable operating temperature even in high-temperature workshops (≤45℃), preventing pressure drops caused by overheating.
Spraying requires clean, oil-free air to ensure coating adhesion and smoothness. The TGA series’ efficient precision filtration system (three-stage filtration: air intake, oil-air separation, post-filter) removes 99.9% of impurities and oil droplets, meeting ISO 8573-1 Class 2 air quality standards. Its fixed installation design (external dimensions 950×670×950 mm to 3900×2100×2280 mm) saves workshop space, integrating easily with existing spraying pipelines.
• First-Class Energy Efficiency: Adopts high-efficiency screw air ends with optimized rotor profiles, reducing specific power consumption by 8-12% compared to ordinary fixed-speed compressors.

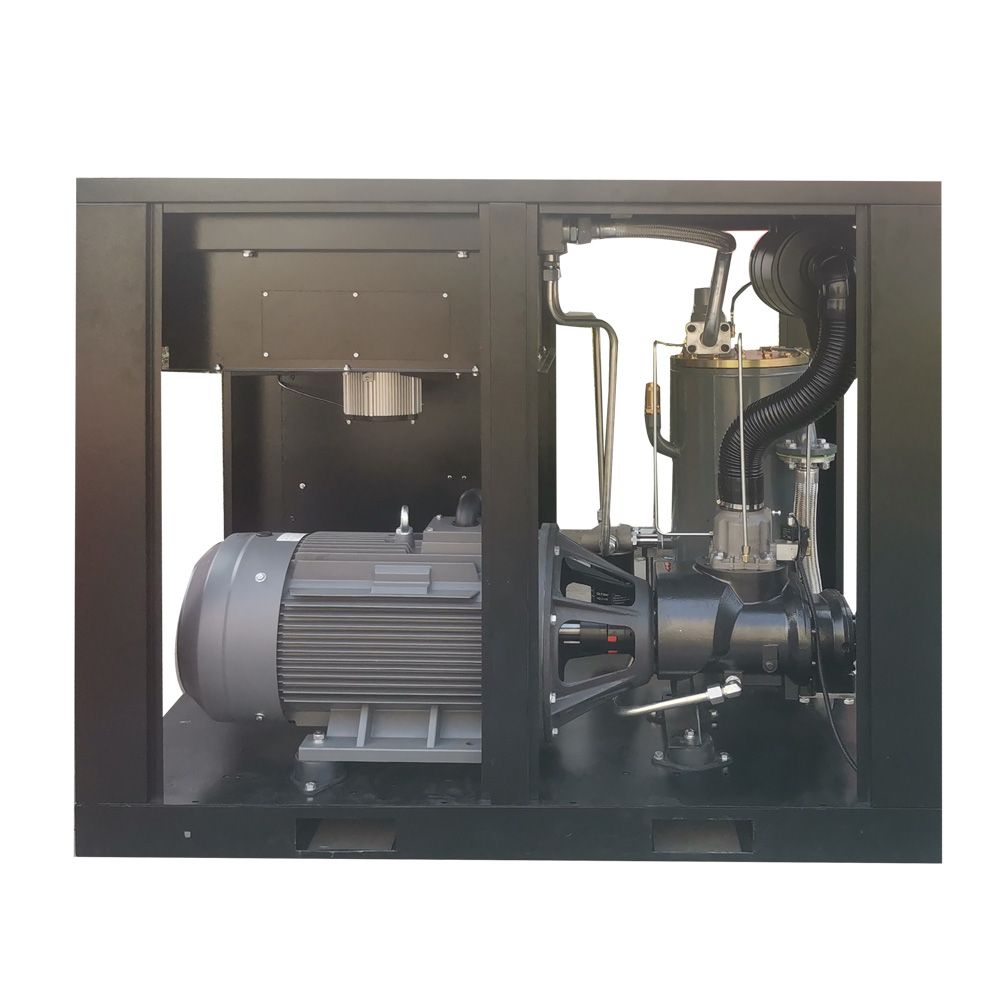

• High Operational Stability: Direct-drive structure eliminates belt wear and slip, reducing failure rate by 30%; voltage adaptation (380V/50Hz) fits global industrial power grids.
• Cost-Effective Operation: Low maintenance costs (lubricant replacement cycle up to 4000 hours); standardized spare parts (e.g., oil filters, air filters) are widely available at low prices.
• Electric Motor: 7.5-250 kW copper-wound motors with IP54 protection, resistant to dust and moisture; rated insulation class F ensures safe operation in harsh environments.
• Lubrication System: Requires 4-150L of dedicated compressor lubricant (depending on model) with excellent thermal stability, preventing oil oxidation at high temperatures.
• Outlet & Piping: Outlet pipe diameters range from G3/4 to DN125, compatible with common industrial air hoses; internal anti-corrosion coating reduces rust and extends pipeline life.
• External Structure: Heavy-duty steel frame with anti-rust painting, suitable for long-term indoor installation; compact design for easy integration into workshop layouts.
• Technical Consultation: Provide air system design (e.g., pipeline diameter calculation, pressure loss analysis) to avoid overcapacity or insufficient supply.
• Installation & Training: Send engineers for on-site installation guidance (for models ≥75 kW) and train operators on daily inspection (e.g., oil level check, filter replacement).
• Warranty & Maintenance: Offer 18-month whole-machine warranty (excluding wearing parts like filters); provide annual maintenance plans to extend compressor service life to 10+ years.
