| Quantity: | |
|---|---|
MODEL | SUPD50-8 | SUPD60-8 | SUPD75-8 | SUPD100-8 | SUPD125-8 | SUPD175-8 | SUPD175-13 | SUPD175-18-T | SUPD200-13 | |
Volumetric flow rate m³/min | 6 | 8 | 10 | 13 | 16 | 24 | 16 | 22 | 22 | |
Exhaust pressure bar | 8 | 8 | 8 | 8 | 8 | 8 | 13 | 18 | 13 | |
Power(KW) | 37 | 45 | 55 | 75 | 90 | 132 | 132 | 132 | 160 | |
Air Out Size:size^quantity | G1*2 | G1*2 | G1-1/2*1&G1*1 | G1-1/2*1&G1*1 | G1-1/2*1&G1*1 | G1-1/2*18G1*1 | G1-1/2*1&G1*1 | G1-1/2*1&G2*1 | G2*1&G1*1 | |
Suggested maximum working ltitude (Max m) | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | |
Machine type | Two-Wheeled | Two-Wheeled | Four-Wheeled | Four-Wheeled | Four-Wheeled | Four-Wheeled | Four-Wheeled | Four-Wheeled | Four-Wheeled | |
Maximum working angle Max | 15° | 15° | 15° | 15° | 15° | 15° | 15° | 15° | 15° | |
External Dimension | Weight (kg) | 860 | 900 | 1900 | 2100 | 2300 | 2300 | 2400 | 4000 | 3400 |
Length (mm) | 2960 | 2960 | 2700 | 2700 | 2700 | 3100 | 3100 | 3400 | 3100 | |
Width(mm) | 2270 | 2270 | 1700 | 1700 | 1700 | 1600 | 1600 | 1600 | 1800 | |
Height (mm) | 1545 | 1545 | 1900 | 1900 | 1900 | 2100 | 1870 | 2100 | 2200 | |
The SUPD Series Electric Mobile Screw Air Compressor is built for on-site flexibility—designed to deliver reliable compressed air in remote or temporary locations where fixed compressors are impractical. Unlike stationary models, it features a rugged, mobile design (two-wheeled or four-wheeled) and adaptability to harsh outdoor conditions (15° maximum working angle, dust-resistant components). It is the go-to solution for rock drilling, construction, and remote infrastructure maintenance, where mobility and durability are non-negotiable.
The SUPD Series includes 9 models (SUPD50-8 to SUPD200-13), with volumetric flow rates from 6 m³/min to 24 m³/min, exhaust pressure from 8 bar to 18 bar, and motor power from 37KW to 160KW. Designs range from two-wheeled (SUPD50-8, SUPD60-8) for easy maneuvering in tight spaces to four-wheeled (all other models) for heavy-duty outdoor use. Weights span 860Kg to 4000Kg, with dimensions from 296022701545 mm (SUPD50-8) to 340016002100 mm (SUPD175-18-T).
Mining and quarry operations require high-pressure air for rock drilling and crushing equipment—often in remote areas with no fixed power infrastructure. The SUPD Series delivers:
• High pressure (up to 18 bar for SUPD175-18-T) to power large drill bits.
• Large air flow (24 m³/min for SUPD175-8) to support continuous drilling.
• 15° maximum working angle to operate on uneven quarry floors without tipping.
Its IP54 motor resists dust and moisture, ensuring reliable performance in dusty mining environments.
Construction sites often face unexpected air needs (e.g., emergency pipe repairs, temporary tool operation). The SUPD Series’ mobility lets you move it to any location on-site:
• Two-wheeled models (SUPD50-8, SUPD60-8) fit through narrow construction entrances.

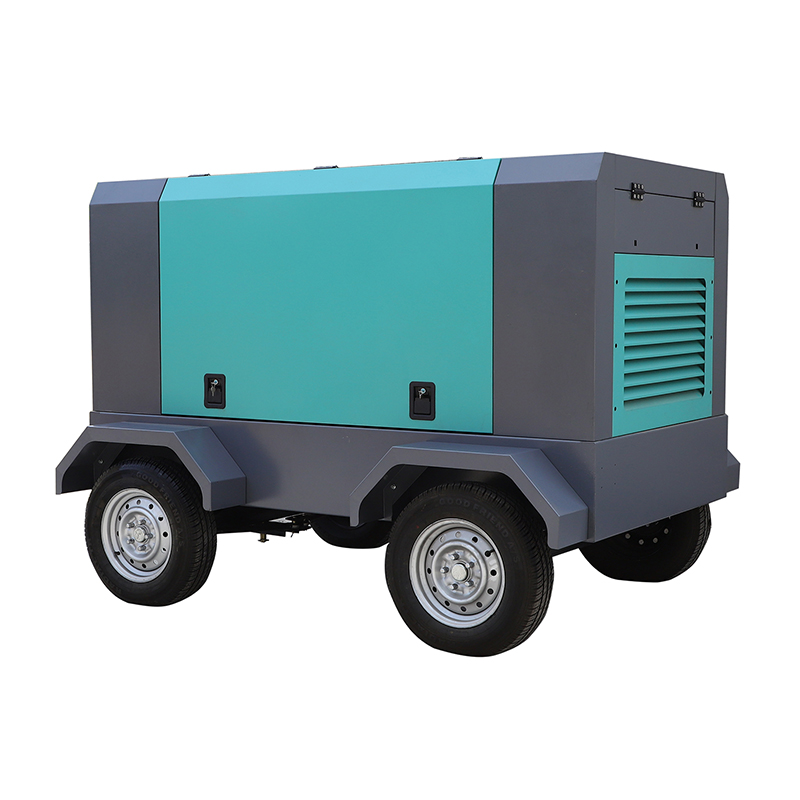

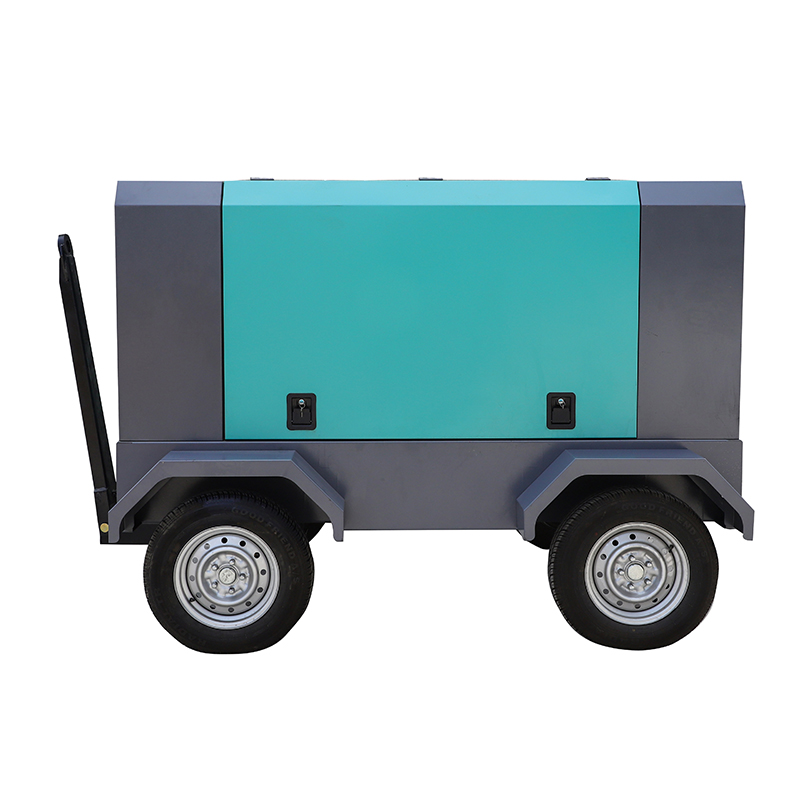

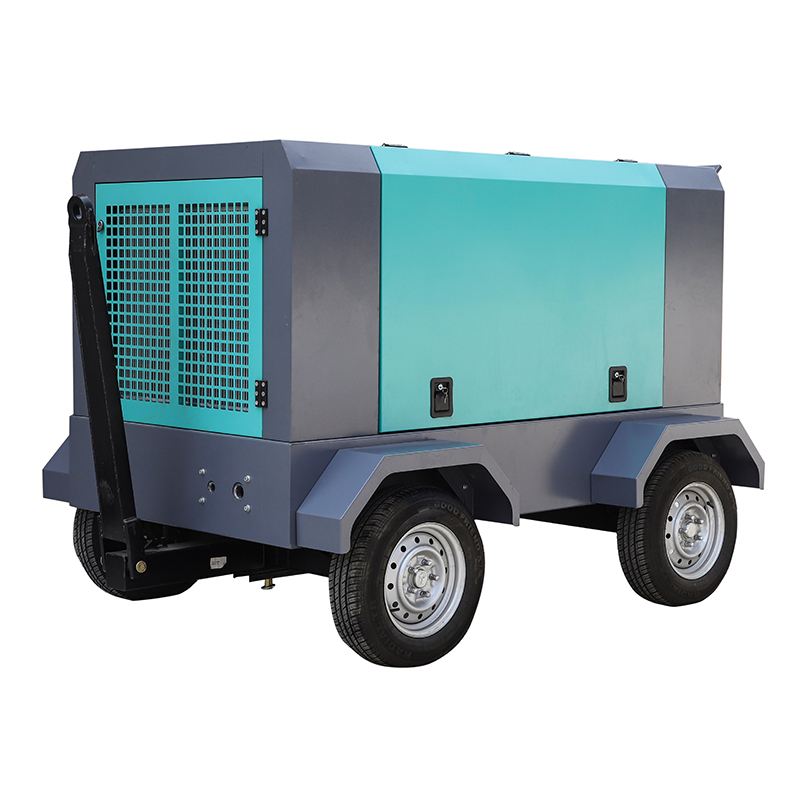

• Four-wheeled models (e.g., SUPD75-8) handle rough terrain (gravel, dirt) with ease.
The compressor’s quick-start function (30-second boot time) ensures you can respond to emergencies without delay.
Infrastructure projects (e.g., rural road repairs, pipeline maintenance) lack access to grid power or fixed compressors. The SUPD Series can be paired with portable generators for off-grid use, delivering consistent air for tools like impact wrenches and paint sprayers. Its compact design (e.g., SUPD100-8: 270017001900 mm) fits in small transport vehicles, reducing logistics costs.
Two-wheeled models feature heavy-duty rubber tires (20-inch diameter) for easy towing by a small vehicle, while four-wheeled models use reinforced steel rims and off-road tires to handle rough terrain. All models include a locking brake system to keep the unit stable during operation.
We offer customizations based on your needs:
• Air outlet configuration: Choose from G12, G1-1/21&G11, or G21&G1*1 to match your tools.
• Pressure adjustments: Models like SUPD175-13 (13 bar) and SUPD175-18-T (18 bar) cater to high-pressure applications (e.g., deep rock drilling).
• Additional accessories: Add a portable air tank or filter dryer for specialized tasks (e.g., painting, which requires dry air).
The SUPD Series is built to withstand outdoor challenges:
• Suggested maximum working altitude of 20m (suitable for most construction and mining sites).
• Dust-resistant air filter (replaceable from the outside) to prevent clogging in dusty environments.
• Weather-resistant control panel cover to protect against rain and snow.

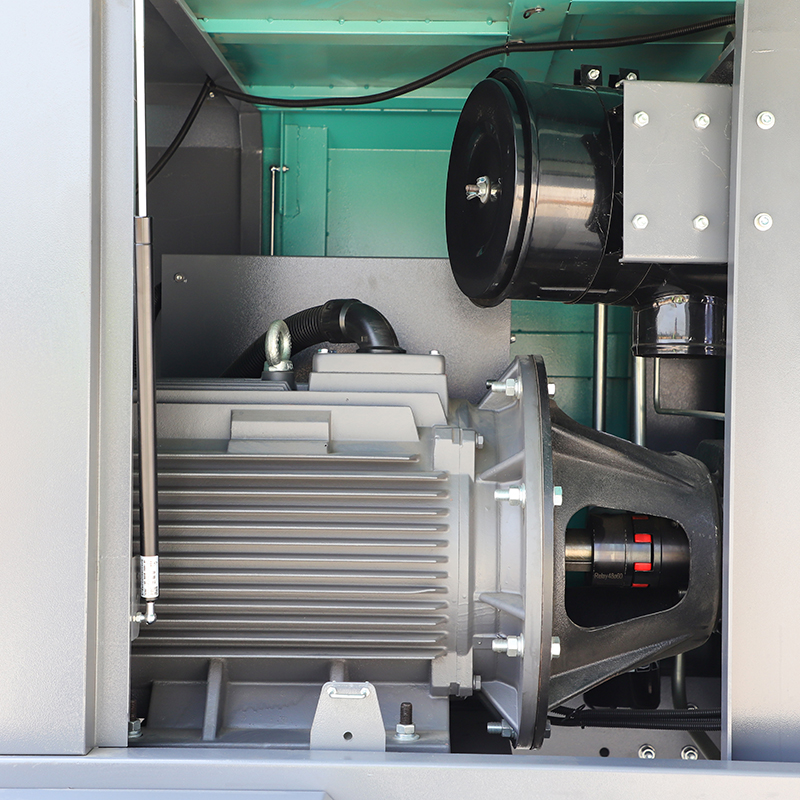

Each model features a high-torque IP54 motor (insulation class F, service factor SF=1.15/SF=1.2) that delivers consistent power even at low voltages (e.g., 380V±10%). For example, the SUPD200-13 (160KW motor) provides 22 m³/min of air at 13 bar—enough to power two large drill rigs simultaneously.
The unit’s frame is made of thickened steel (5mm thickness) to withstand impacts during transport. A low center of gravity reduces the risk of tipping on uneven ground, while the 15° maximum working angle ensures operation on sloped surfaces (e.g., quarry benches).

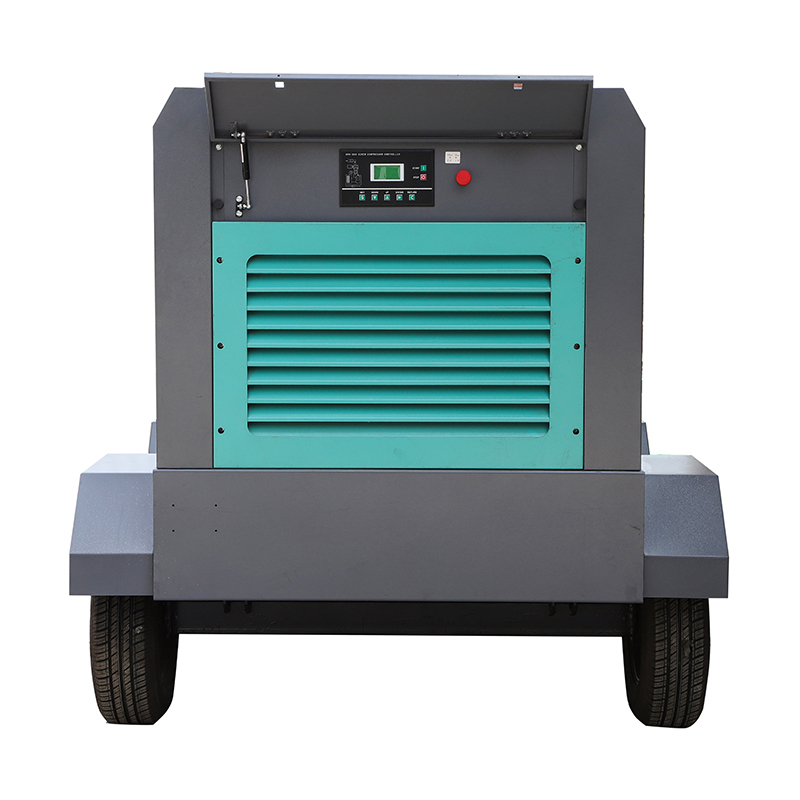

The control panel features a simple, waterproof touchscreen (readable in sunlight) with:
• Real-time display of pressure, flow rate, and motor temperature.
• Fault warnings (e.g., low oil pressure, overheating) with clear indicators.
• One-button start/stop for easy operation by on-site workers (no specialized training required).
Our engineers travel to your job site to debug the compressor, ensuring it works with your tools (drills, crushers) and power source (grid or generator). We also provide 1-hour training sessions for on-site teams, covering operation, safety checks, and basic troubleshooting.
For breakdowns in remote locations, we offer on-site maintenance within 48 hours (for regions with our service centers). Technicians carry common spare parts (filters, fuses, tires) to minimize downtime—critical for time-sensitive projects like road repairs.
We ship spare parts to remote sites via courier services (e.g., DHL, FedEx) with tracking. For long-term projects, we can pre-position spare parts (e.g., oil filters, motor components) at your on-site storage facility to avoid delays. We also offer a 6-month warranty on wearable parts (tires, filters) and a 12-month warranty on core components (motor, air end).
