| Quantity: | |
|---|---|
| MODEL | SUPC50-8 | SUPC75-8 | SUPC80-10 | SUPC100-8 | SUPC110-8 | SUPC160-8 | SUPC160-13 | SUPC175-13 | |||||||
| Two-Wheeled | Skid container | Two-Wheeled | Skid container | Two-Wheeled | Skid container | Two-Wheeled | Two-Wheeled | Skid container | Four-Wheeled | Four-Wheeled | Skid container | Four-Wheeled | |||
| Air compressor | m³/min（cfm） | 4.5 | 6 | 5 | 8 | 8 | 13 | 10 | 10 | ||||||
| bar（psi） | 8 | 8 | 10 | 8 | 8 | 8 | 13 | 13 | |||||||
| Air Outlet Size： | G1"×2 | G1"×2 | G1"×2 | G1"×2 | G1"×2 | G1 1/2" & G1" × 1 | G1 1/2" & G1" × 1 | G1 1/2" & G1" × 1 | |||||||
| Max m | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | |||||||
| L： mm | 2500 | 1800 | 2900 | 1800 | 3000 | 1920 | 2700 | 2700 | 2050 | 3000 | 3000 | 2360 | 3200 | ||
| W： mm | 1900 | 1150 | 1700 | 1150 | 1800 | 1565 | 1860 | 1860 | 1350 | 1890 | 1890 | 1550 | 1890 | ||
| H： mm | 1700 | 1000 | 1950 | 1050 | 2000 | 1560 | 1950 | 1950 | 1980 | 2000 | 2000 | 1780 | 2200 | ||
| Kg | 950 | 800 | 1100 | 950 | 1250 | 1100 | 1500 | 1800 | 1500 | 2600 | 2600 | 2300 | 2800 | ||
| Max km/h | 20 | - | 20 | - | 20 | - | 20 | 20 | - | 20 | 20 | - | 20 | ||
| Max ° | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | |||||||
| Engine | Brand | FAWDE | FAWDE | Cummins | FAWDE | Cummins | FAWDE | Yuchai | Weichai | ||||||
| Power （kW） | 36.8 | 55 | 60 | 74 | 81 | 118 | 118 | 129 | |||||||
| Tail gas | Non-road country III | Non-road country III | Non-road country Ⅳ | Non-road country III | Non-road country III | Non-road country Ⅳ | |||||||||
| For reference only,change without notice. | |||||||||||||||

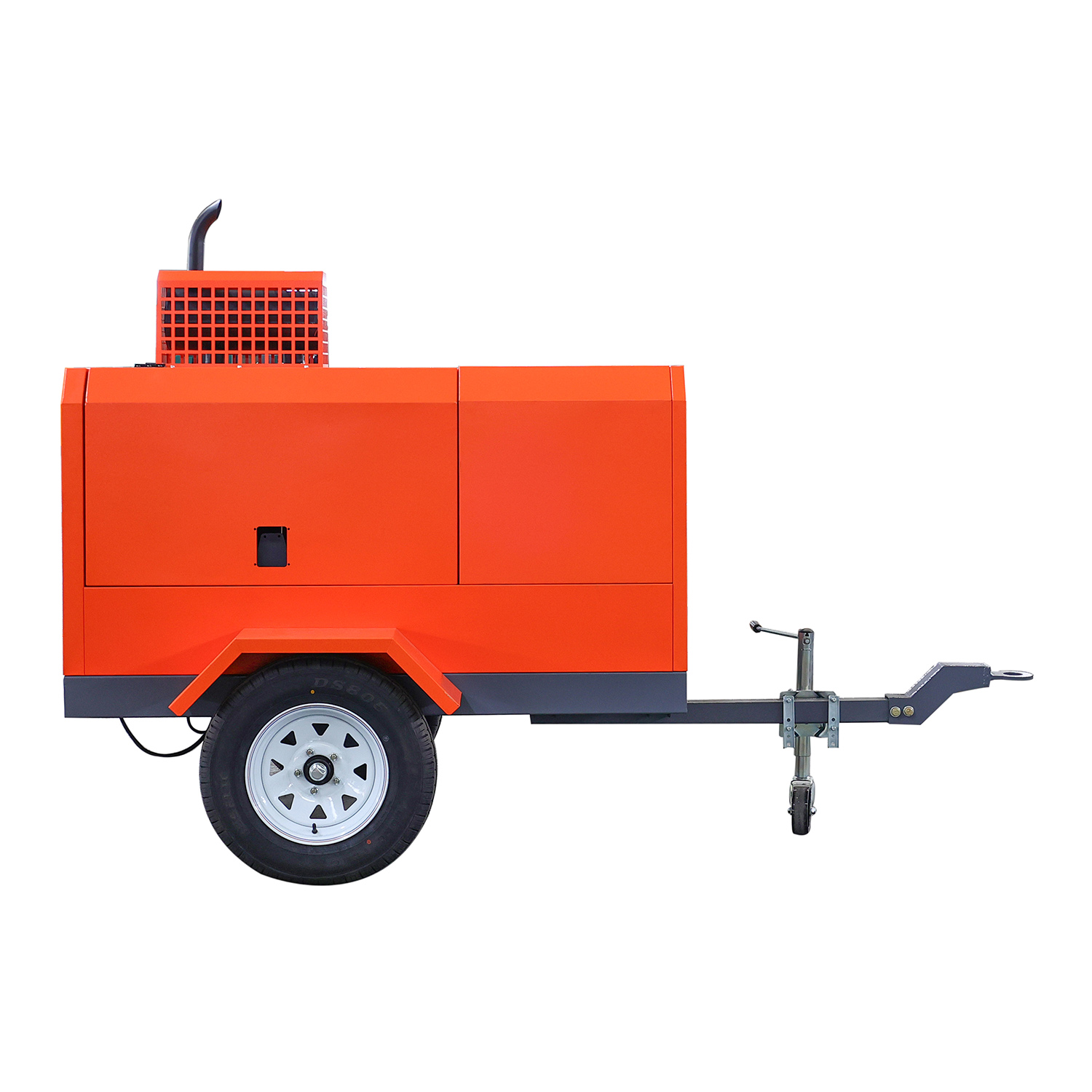

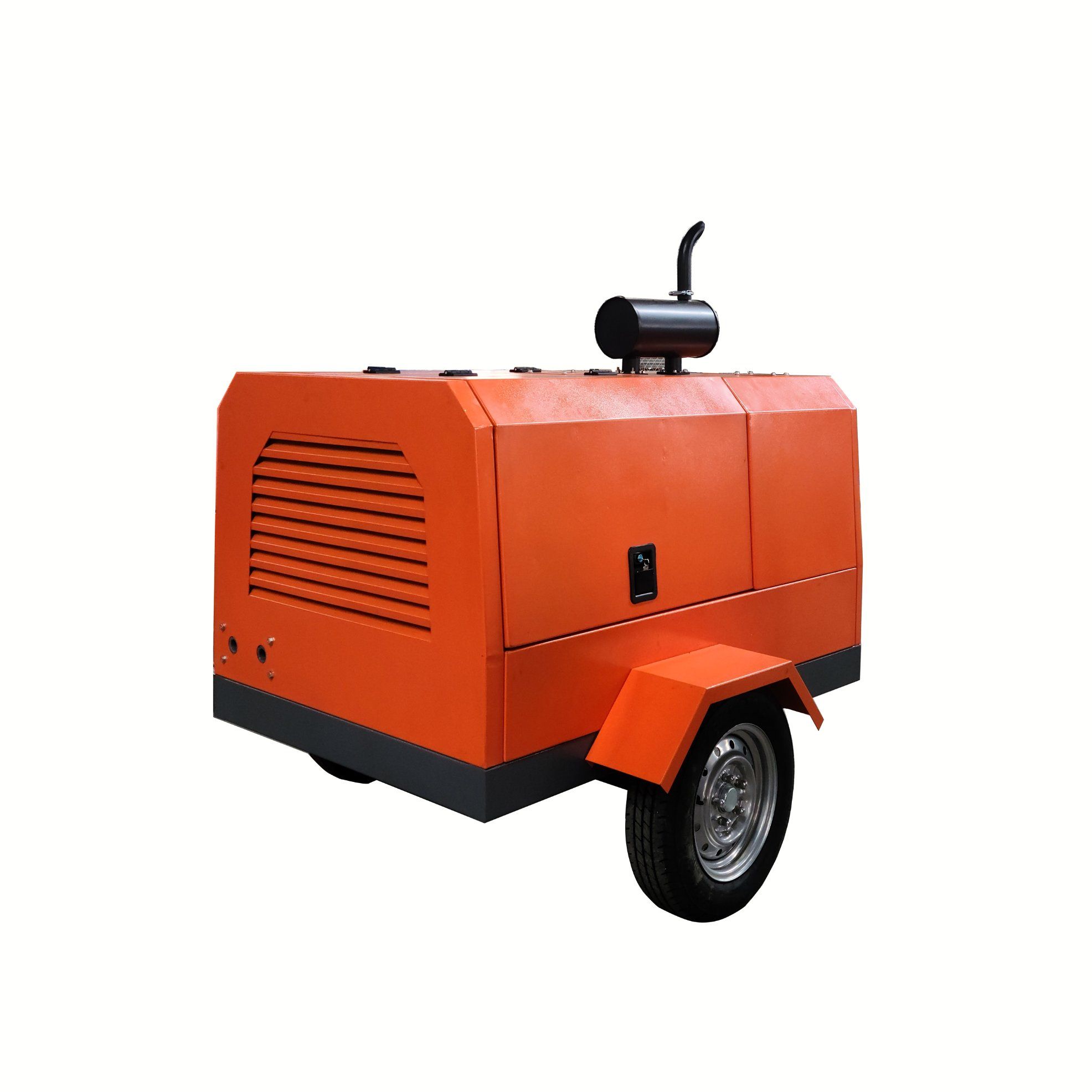

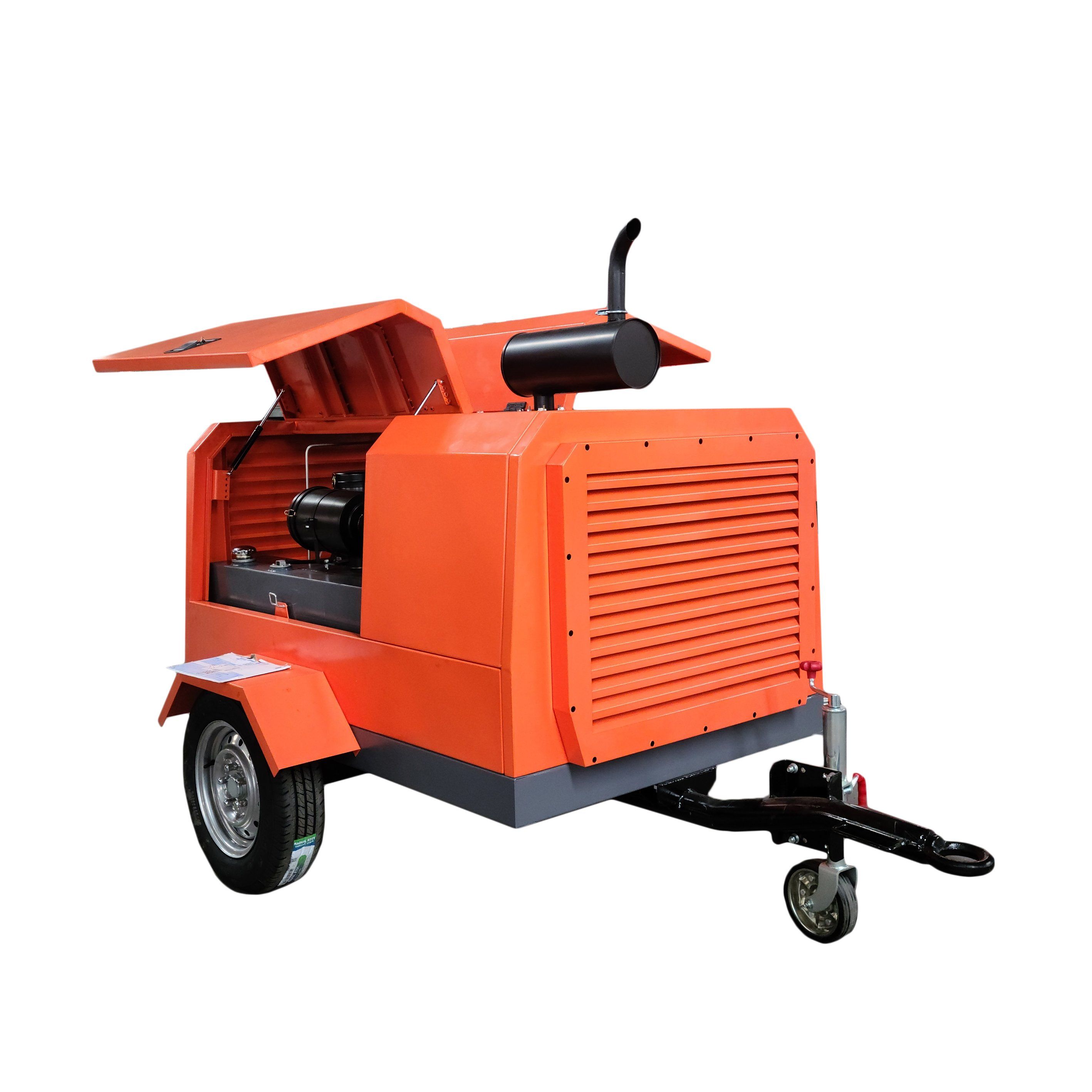

The SUPC series diesel powered mobile screw air compressor is a professional air supply solution tailored for rock drilling, crushing, and other mobile construction scenarios. Unlike stationary air compressors, it integrates high-performance diesel power systems with flexible mobility designs, supporting efficient operations in remote or non-electrified job sites. Available in 8 core models (SUPC50-8 to SUPC175-13) with diverse mobile structures—two-wheeled, skid container, and four-wheeled—it can adapt to different transportation and deployment needs. With free air delivery ranging from 4.5 to 13 m³/min and working pressure of 8 to 13 bar, it meets the continuous air demand of heavy-duty equipment like rock drills and crushers.
In open-pit mines or quarries, fixed power sources are often unavailable, and equipment needs to move with mining progress. The SUPC series solves this pain point: its maximum travel speed of 20 km/h and 15° climbing capacity allow easy movement between mining faces. Equipped with Cummins or FAWDE diesel engines (36.8-129 kW power), it provides stable air supply for continuous rock drilling, avoiding downtime caused by power outages.
During roadbed crushing or bridge pier foundation construction, the SUPC series’ skid container design enables quick hoisting by cranes, reducing on-site deployment time. Its 2000m altitude adaptability ensures normal operation in high-altitude areas (e.g., mountain road construction), where low air density often affects compressor performance.
For emergency tasks like post-disaster debris clearing or temporary pipeline pressure testing, the SUPC series’ customizable configurations (e.g., additional air outlets) support simultaneous use of multiple tools. Its compact size (minimum 1800×1150×1000 mm) fits in small transport vehicles, ensuring rapid arrival at emergency sites.
• Movable & Flexible: Multiple mobile structures (two-wheeled for short-distance movement, four-wheeled for long-distance transport) adapt to diverse terrains.
• Reliable Power System: Adopts Non-road Country III/IV emission engines (Yuchai, Weichai optional) to meet environmental standards in most regions, with low fuel consumption and long service life.
• Customizable Design: Supports personalized adjustments (e.g., air outlet quantity, fuel tank capacity) based on customer needs, avoiding “one-size-fits-all” inefficiency.
• Air End: Uses the most advanced screw elements with single-stage/double-stage compression options, ensuring high air delivery efficiency and low wear (service life up to 8000 hours).
• Control Panel: Advanced touch-screen controller with fault warning (e.g., low oil pressure, high temperature) and multi-language LCD display, enabling easy operation for international teams.
• IP54 Motor: Insulation class F (rated as B class assessment) with service factor SF=1.15, dustproof and waterproof, suitable for dusty construction sites.
• Filtration & Separation: High-quality WD950 oil filters remove impurities to extend lubricant life; stainless steel oil-air separation barrels reduce oil carryover to ≤3 ppm, protecting downstream tools.
• Pre-Sales Support: Provide customized air supply solution calculations (e.g., matching compressor models based on drill bit size) and on-site terrain assessments.
• In-Sales Service: Deliver standard models within 30 days; provide installation guidance videos for skid-mounted or wheeled configurations.
• After-Sales Guarantee: Offer 18-month warranty for core components (engine, air end); establish a global spare parts warehouse to ensure replacement parts arrive within 72 hours for key markets.
