| Quantity: | |
|---|---|
Compressor | Free Air Delivery (m³/min) | 0.8Mpa | 1.2 | 1.6 | 2.2 | 3.4 | 5 | 6.2 | 7.5 | 9.5 | 12.5 | 15.5 | 18.9 | 21.7 | 27.2 | 30.83 | 35.1~43.6 | 43.6 | |
1.0Mpa | 0.9 | 1.06 | 1.64 | 3.25 | 3.25 | 4.9 | 5.9 | 7 | 9.14 | 11.58 | 14.8 | 18.75 | 21.5 | 29.2 | 32.1 | 41.4 | |||
1.25Mpa | 0.7 | 1.04 | 1.63 | 2.6 | 3.1 | 4.7 | 5.7 | 6.7 | 8.9 | 11.4 | 14.5 | 18.58 | 21.3 | 26.53(sf1.3) | 28.86 | // | |||
Outlet pipe diameter (inch) | G3/4 | G1 | G1 | G1 | G11/2 | G11/2 | G11/2 | G2 | G2 | G2 | G21/2 | G21/2 | G21/2 | DN100 | DN100 | DN100 | |||
Lubrucant Requirement(L) | 4 | 10 | 16 | 22 | 48 | 65 | 72 | 90 | 125 | 150 | |||||||||
Motor | Power(KW) | 7.5 | 11 | 15 | 22 | 30 | 37 | 45 | 55 | 75 | 90 | 110 | 132 | 160 | 185 | 220 | 250 | ||
Voltage | 380V | ||||||||||||||||||
Protection Level | IP55 | ||||||||||||||||||
Starting method | Variable frequency startup | ||||||||||||||||||
Noise(db) | 68±2 | 70±2 | 72±2 | 74±2 | 80±2 | 85±2 | 88±2 | ||||||||||||
Weight (kg) | 160 | 265 | 365 | 545 | 570 | 1130 | 1230 | 1600 | 2000 | 2100 | 2800 | 3500 | 3600 | 3800 | |||||
External Dimension | Length (mm) | 950 | 1050 | 1500 | 1500 | 1900 | 2300 | 2500 | 3900 | ||||||||||
Width(mm) | 670 | 700 | 1000 | 1000 | 1250 | 1470 | 1470 | 2100 | |||||||||||
Height(mm) | 950 | 1125 | 1300 | 1300 | 1550 | 1840 | 1840 | 2280 | |||||||||||

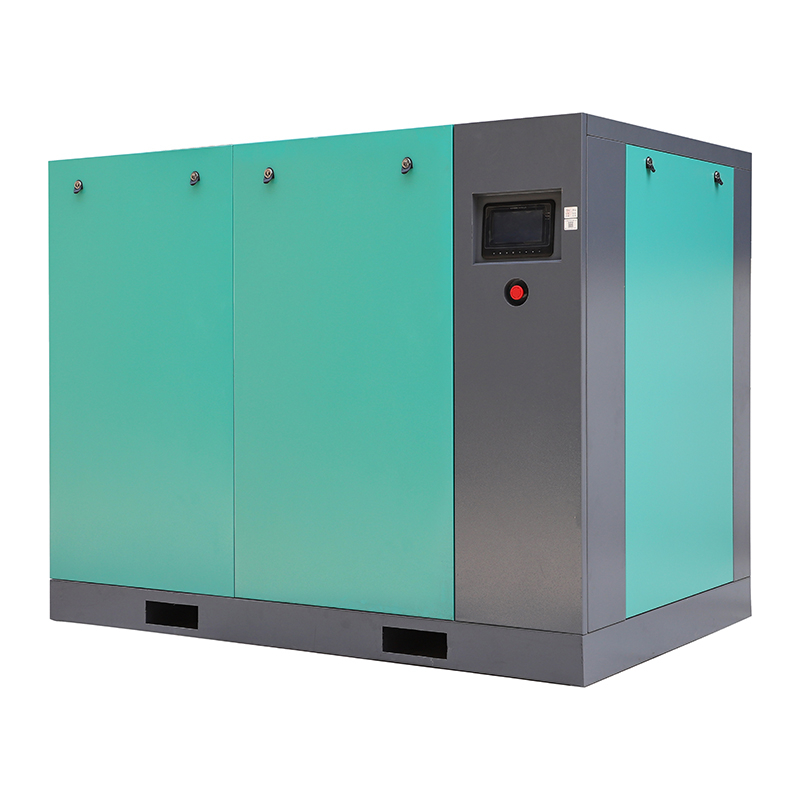

The TGM Series Variable-Frequency Stationary Screw Air Compressor is a high-efficiency, energy-saving flagship product designed for modern industrial environments. Integrating permanent magnet frequency conversion technology, a multi-noise reduction system, and a precise filtration system, it solves the pain point of high energy consumption in traditional fixed-speed compressors. With motor power ranging from 7.5KW to 250KW and free air delivery from 0.7 m³/min (1.25MPa) to 43.6 m³/min (0.8MPa), the TGM Series meets the demand for stable, energy-efficient air supply in medium to large-scale industrial scenarios.
Factories with 24/7 production lines (e.g., automotive component stamping) need constant air supply while controlling electricity costs. The TGM Series’ variable frequency startup adjusts motor speed based on real-time air demand—for example, when stamping machines are in standby (air demand drops by 40%), the compressor automatically reduces speed, cutting energy consumption by 20-30% compared to fixed-speed models. A 100-person automotive parts factory using TGM-75HP (75KW) saves over $12,000 in annual electricity bills.
Precision equipment like SMT (Surface Mount Technology) machines requires ultra-clean, stable air to avoid component damage. The TGM Series’ efficient cooling system and precise filtration system (with multi-stage air and oil filtration) ensure compressed air purity (oil content < 3ppm) and stable pressure (fluctuation ≤ ±0.02MPa). This reduces SMT machine downtime by 8% and improves product qualification rates.
Large spraying lines (e.g., 10+ painting booths) need uniform air flow across all booths. The TGM Series’ large-capacity air end and DN100 outlet pipe (for high-power models) ensure sufficient air distribution, while its 380V IP55 motor resists paint mist and moisture, maintaining reliable operation in harsh spraying environments.

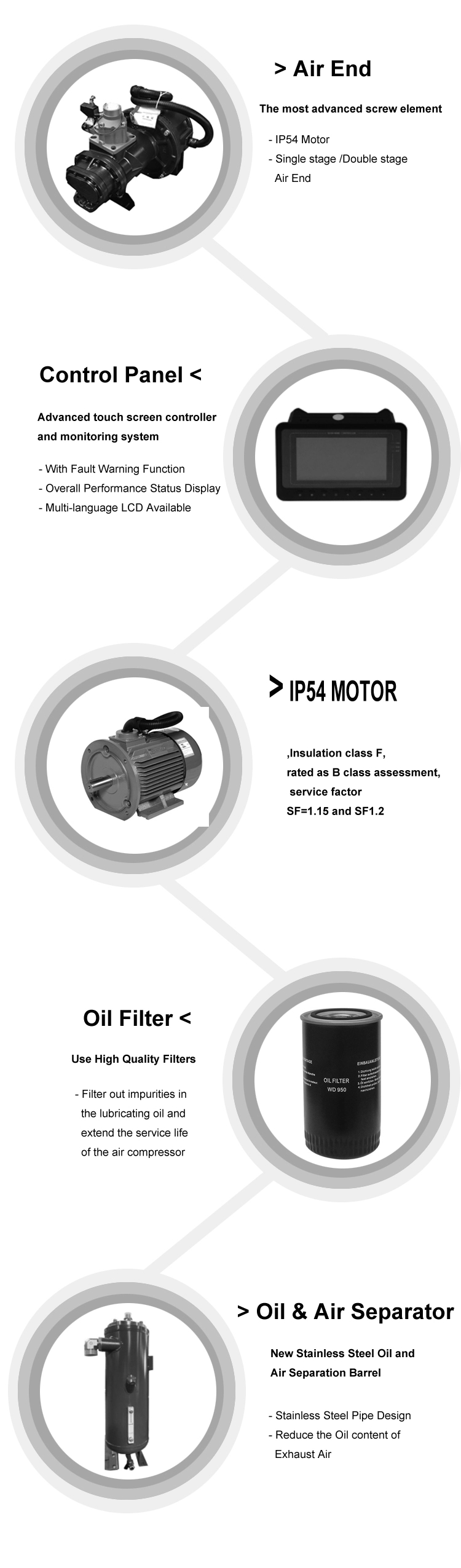

• First-Class Energy Efficiency Standard: Complies with global energy efficiency Class 1, reducing energy consumption by 20-35% compared to non-inverter compressors.
• High Stability: Multi-noise reduction system (noise 68±2 db(A) to 88±2 db(A)) and IP55 motor protection (dustproof, waterproof) ensure long-term stable operation in complex industrial environments.
• Intelligent Control: Advanced touch-screen controller with fault warning, overall performance display, and multi-language LCD (supports English, Spanish, German, etc.), enabling remote monitoring and troubleshooting.
• Permanent Magnet Variable-Frequency Motor: High torque at low speeds, no idle energy waste; service factor SF=1.2 ensures overload resistance during peak demand.
• Oil & Air Separator: New stainless steel separation barrel with optimized internal structure, reducing oil carryover to < 3ppm and extending the service life of downstream equipment (e.g., air dryers).
• Lubrication System: Lubricant capacity ranges from 4L to 150L, with high-temperature resistant oil (suitable for -10℃ to 45℃ working temperatures) to avoid oil degradation in high-load operations.
• Energy-Saving Consultation: Our engineers conduct on-site energy audits to recommend the most suitable TGM model (e.g., matching motor power to actual air demand) and optimize pipeline design for further energy savings.
• Remote Monitoring Service: Optional IoT module allows real-time monitoring of compressor status (pressure, temperature, energy consumption) via a mobile app, with automatic fault alerts.
• Warranty: 2-year warranty on the motor and air end, 1-year warranty on electrical components, and free maintenance training for factory technicians.
Compressor | Free Air Delivery (m³/min) | 0.8Mpa | 1.2 | 1.6 | 2.2 | 3.4 | 5 | 6.2 | 7.5 | 9.5 | 12.5 | 15.5 | 18.9 | 21.7 | 27.2 | 30.83 | 35.1~43.6 | 43.6 | |
1.0Mpa | 0.9 | 1.06 | 1.64 | 3.25 | 3.25 | 4.9 | 5.9 | 7 | 9.14 | 11.58 | 14.8 | 18.75 | 21.5 | 29.2 | 32.1 | 41.4 | |||
1.25Mpa | 0.7 | 1.04 | 1.63 | 2.6 | 3.1 | 4.7 | 5.7 | 6.7 | 8.9 | 11.4 | 14.5 | 18.58 | 21.3 | 26.53(sf1.3) | 28.86 | // | |||
Outlet pipe diameter (inch) | G3/4 | G1 | G1 | G1 | G11/2 | G11/2 | G11/2 | G2 | G2 | G2 | G21/2 | G21/2 | G21/2 | DN100 | DN100 | DN100 | |||
Lubrucant Requirement(L) | 4 | 10 | 16 | 22 | 48 | 65 | 72 | 90 | 125 | 150 | |||||||||
Motor | Power(KW) | 7.5 | 11 | 15 | 22 | 30 | 37 | 45 | 55 | 75 | 90 | 110 | 132 | 160 | 185 | 220 | 250 | ||
Voltage | 380V | ||||||||||||||||||
Protection Level | IP55 | ||||||||||||||||||
Starting method | Variable frequency startup | ||||||||||||||||||
Noise(db) | 68±2 | 70±2 | 72±2 | 74±2 | 80±2 | 85±2 | 88±2 | ||||||||||||
Weight (kg) | 160 | 265 | 365 | 545 | 570 | 1130 | 1230 | 1600 | 2000 | 2100 | 2800 | 3500 | 3600 | 3800 | |||||
External Dimension | Length (mm) | 950 | 1050 | 1500 | 1500 | 1900 | 2300 | 2500 | 3900 | ||||||||||
Width(mm) | 670 | 700 | 1000 | 1000 | 1250 | 1470 | 1470 | 2100 | |||||||||||
Height(mm) | 950 | 1125 | 1300 | 1300 | 1550 | 1840 | 1840 | 2280 | |||||||||||
The TGM Series Variable-Frequency Stationary Screw Air Compressor is a high-efficiency, energy-saving flagship product designed for modern industrial environments. Integrating permanent magnet frequency conversion technology, a multi-noise reduction system, and a precise filtration system, it solves the pain point of high energy consumption in traditional fixed-speed compressors. With motor power ranging from 7.5KW to 250KW and free air delivery from 0.7 m³/min (1.25MPa) to 43.6 m³/min (0.8MPa), the TGM Series meets the demand for stable, energy-efficient air supply in medium to large-scale industrial scenarios.
Factories with 24/7 production lines (e.g., automotive component stamping) need constant air supply while controlling electricity costs. The TGM Series’ variable frequency startup adjusts motor speed based on real-time air demand—for example, when stamping machines are in standby (air demand drops by 40%), the compressor automatically reduces speed, cutting energy consumption by 20-30% compared to fixed-speed models. A 100-person automotive parts factory using TGM-75HP (75KW) saves over $12,000 in annual electricity bills.
Precision equipment like SMT (Surface Mount Technology) machines requires ultra-clean, stable air to avoid component damage. The TGM Series’ efficient cooling system and precise filtration system (with multi-stage air and oil filtration) ensure compressed air purity (oil content < 3ppm) and stable pressure (fluctuation ≤ ±0.02MPa). This reduces SMT machine downtime by 8% and improves product qualification rates.
Large spraying lines (e.g., 10+ painting booths) need uniform air flow across all booths. The TGM Series’ large-capacity air end and DN100 outlet pipe (for high-power models) ensure sufficient air distribution, while its 380V IP55 motor resists paint mist and moisture, maintaining reliable operation in harsh spraying environments.
• First-Class Energy Efficiency Standard: Complies with global energy efficiency Class 1, reducing energy consumption by 20-35% compared to non-inverter compressors.
• High Stability: Multi-noise reduction system (noise 68±2 db(A) to 88±2 db(A)) and IP55 motor protection (dustproof, waterproof) ensure long-term stable operation in complex industrial environments.
• Intelligent Control: Advanced touch-screen controller with fault warning, overall performance display, and multi-language LCD (supports English, Spanish, German, etc.), enabling remote monitoring and troubleshooting.
• Permanent Magnet Variable-Frequency Motor: High torque at low speeds, no idle energy waste; service factor SF=1.2 ensures overload resistance during peak demand.
• Oil & Air Separator: New stainless steel separation barrel with optimized internal structure, reducing oil carryover to < 3ppm and extending the service life of downstream equipment (e.g., air dryers).
• Lubrication System: Lubricant capacity ranges from 4L to 150L, with high-temperature resistant oil (suitable for -10℃ to 45℃ working temperatures) to avoid oil degradation in high-load operations.
• Energy-Saving Consultation: Our engineers conduct on-site energy audits to recommend the most suitable TGM model (e.g., matching motor power to actual air demand) and optimize pipeline design for further energy savings.
• Remote Monitoring Service: Optional IoT module allows real-time monitoring of compressor status (pressure, temperature, energy consumption) via a mobile app, with automatic fault alerts.
• Warranty: 2-year warranty on the motor and air end, 1-year warranty on electrical components, and free maintenance training for factory technicians.
