| Quantity: | |
|---|---|
Model | LGPM-10HP | LGPM-15HP | LGPM-20HP | LGPM-30HP | LGPM-50HP | LGPM-60HP |
Motor Power(KW) | 7.5 | 11 | 15 | 22 | 37 | 45 |
Capacity/Pressure | 1.2/0.7 | 1.71/0.7 | 2.3/0.7 | 3.8/0.7 | 6.4/0.7 | 8.5/0.7 |
1.1/0.8 | 1.65/0.8 | 2.25/0.8 | 3.6/0.8 | 6.2/0.8 | 8.0/0.8 | |
0.9/1.0 | 1.32/1.0 | 1.8/1.0 | 3.0/1.0 | 5.6/1.0 | 7.5/1.0 | |
0.8/1.2 | 1.1/1.2 | 1.6/1.2 | 2.6/1.2 | 5.0/1.2 | 7.0/1.2 | |
LubricLGPMing oil(L) | 12 | 16 | 16 | 22 | 26 | 26 |
Noise db(A) | 60-70±2 | 60-70±2 | 60-70±2 | 60-70±2 | 60-70±2 | 60-70±2 |
Length(mm) | 780 | 1050 | 1050 | 1300 | 1470 | 1460 |
Width(mm) | 600 | 700 | 700 | 850 | 1000 | 1000 |
Height(mm) | 1020 | 1150 | 1150 | 1100 | 1380 | 1380 |
Weight(Kg) | 215 | 335 | 335 | 465 | 630 | 825 |
Model | LGPM-75HP | LGPM-100HP | LGPM-125HP | LGPM-150HP | LGPM-175HP | LGPM-200HP |
Motor Power(KW) | 55 | 75 | 90 | 110 | 132 | 160 |
Capacity/Pressure | 10.5/0.7 | 13.2/0.7 | 16.2/0.7 | 21.0/0.7 | 24.6/0.7 | 31.0/0.7 |
10.0/0.8 | 13.0/0.8 | 15.8/0.8 | 20.0/0.8 | 23.0/0.8 | 30.0/0.8 | |
8.5/1.0 | 10.9/1.0 | 14.0/1.0 | 18.0/1.0 | 21.0/1.0 | 26.0/1.0 | |
7.6/1.2 | 9.8/1.2 | 12.8/1.2 | 16.0/1.2 | 18.8/1.2 | 22.0/1.2 | |
LubricLGPMing oil(L) | 54 | 54 | 72 | 90 | 90 | 90 |
Noise db(A) | 70-76±2 | 70-76±2 | 70-76±2 | 70-76±2 | 70-76±2 | 70-76±2 |
Length(mm) | 1900 | 1900 | 1900 | 2020 | 2020 | 2360 |
Width(mm) | 1250 | 1250 | 1250 | 1590 | 1590 | 1610 |
Height(mm) | 1600 | 1600 | 1600 | 1810 | 1810 | 1860 |
Weight(Kg) | 1130 | 1230 | 1325 | 1520 | 1710 | 1850 |

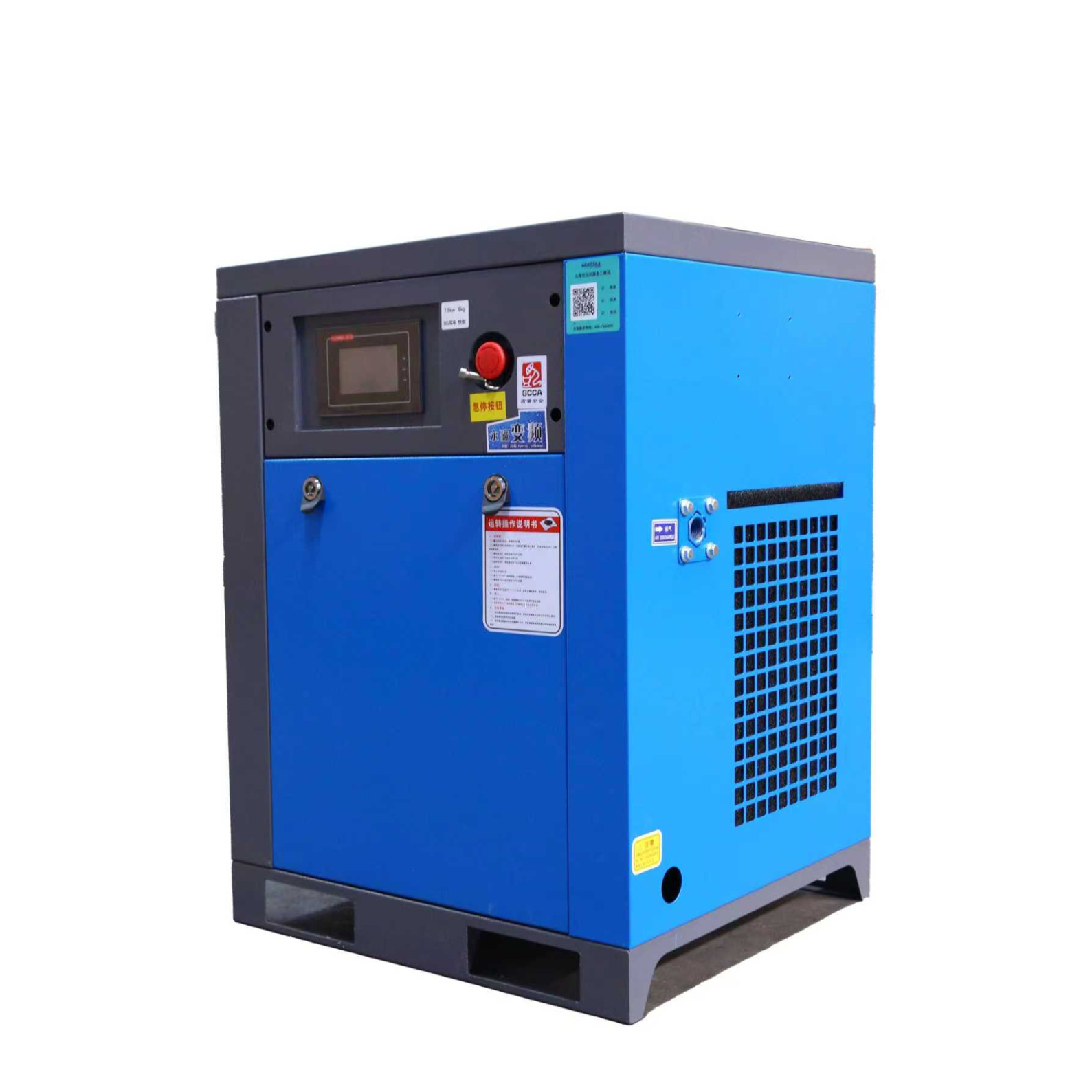

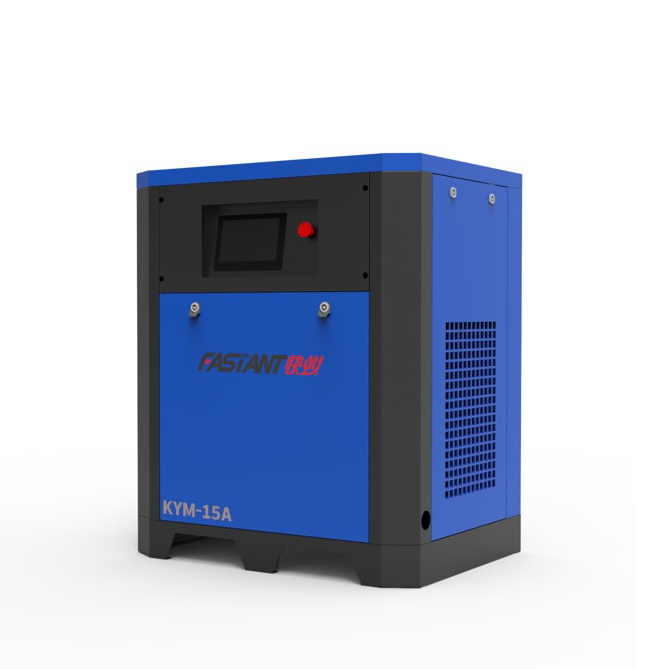

The KYM Series Fixed-Speed Electric Stationary Screw Compressor, developed by our professional R&D team, is a cost-effective air supply solution tailored for industrial scenarios. As a core product in our stationary screw compressor lineup, it integrates reliable fixed-speed operation with durable components, delivering consistent air output to meet the basic and stable gas demand of small and medium-sized enterprises. Available in 12 models (from LGPM-10HP to LGPM-200HP) with motor power ranging from 7.5KW to 160KW, the KYM Series covers air capacity needs from 0.8 m³/min to 31.0 m³/min (at 0.7MPa), making it a versatile choice for businesses seeking high performance without excessive investment.
Many small and medium-sized factories face budget constraints while requiring continuous air supply for processes like assembly, packaging, and material handling. The KYM Series addresses this pain point with its high cost-effectiveness—it eliminates the premium of complex frequency conversion systems while maintaining stable air pressure (0.7MPa to 1.2MPa). For example, a hardware assembly plant using LGPM-15HP (11KW) can get 1.71 m³/min of air at 0.7MPa, supporting 4-6 assembly stations simultaneously, with no frequent pressure fluctuations affecting production efficiency.
Pneumatic drills, grippers, and conveyors in workshops need consistent air flow to avoid malfunctions. The KYM Series’ single-stage/double-stage screw air end (equipped with the most advanced screw elements) ensures steady air delivery, while its low noise level (60-70±2 db(A) for small models, 70-76±2 db(A) for large models) keeps the workshop environment quiet—critical for operators working near automation equipment long-term.
Spraying processes require clean air to prevent paint defects. The KYM Series’ high-quality oil filter (e.g., WD950 model) effectively filters impurities in lubricating oil, and the new stainless steel oil-air separation barrel minimizes oil carryover, ensuring the compressed air meets spraying standards. A furniture spraying workshop using LGPM-30HP (22KW) can achieve uniform paint adhesion, reducing product rework rates by over 15%.
• High Cost-Effectiveness: No expensive frequency conversion modules, lower initial investment, and 30% lower maintenance costs than similar variable-frequency models (thanks to simple fixed-speed structure).
• Low Maintenance Burden: Large-capacity lubricating oil tanks (12L to 90L) extend oil change intervals to 3,000 operating hours; IP54 motors (insulation class F, assessed as B class) resist dust and moisture, reducing motor repair frequency.
• Stable Performance: Service factors of SF=1.15 and SF=1.2 allow the motor to handle short-term overloads, ensuring uninterrupted operation during peak production periods.
• Air End: Adopts the latest screw elements with optimized tooth profiles, improving air compression efficiency by 8% and extending service life to 8,000 hours.
• Control Panel: Equipped with a user-friendly monitoring system (with fault warning function and overall performance status display) and multi-language LCD, enabling easy operation for global users.
• Physical Dimensions: Compact design (length 780mm-2360mm, width 600mm-1610mm, height 1020mm-1860mm) fits most workshop layouts; weights from 215Kg to 1850Kg ensure stable placement without additional fixing brackets.
• Installation Guidance: Our professional team provides on-site installation tutorials (including electrical connection and pipeline layout) and 24/7 online support to ensure quick commissioning.
• Maintenance Services: We offer regular maintenance reminders and customized maintenance plans (e.g., oil filter replacement, lubricating oil top-up) to prolong the compressor’s service life.
• Spare Parts Supply: A global spare parts warehouse ensures fast delivery of core components (e.g., oil filters, screw elements) within 3-5 working days for urgent repairs.
