| Quantity: | |
|---|---|
MODEL | POWER | PRESSURE | FREE AIR DELIVERY | WEIGHT | Dimension | Air Outlet Pipe Diamater |
(Kw) | (Mpa) | (m³/min) | (Kg) | (L*W"H) | (inch) | |
TKM15-16A | 15 | 1.6 | 1.5 | 572 | 1780*790*1780 | G1 |
TKM22-16A | 22 | 1.6 | 2.6 | 630 | 1840*860*1785 | G1 |
TKM30-16A | 30 | 1.6 | 3.1 | 701 | 1840*860*1785 | G1 |
TKM37-16A | 37 | 1.6 | 3.7 | 805 | 2300*990*2020 | G1-1/2 |

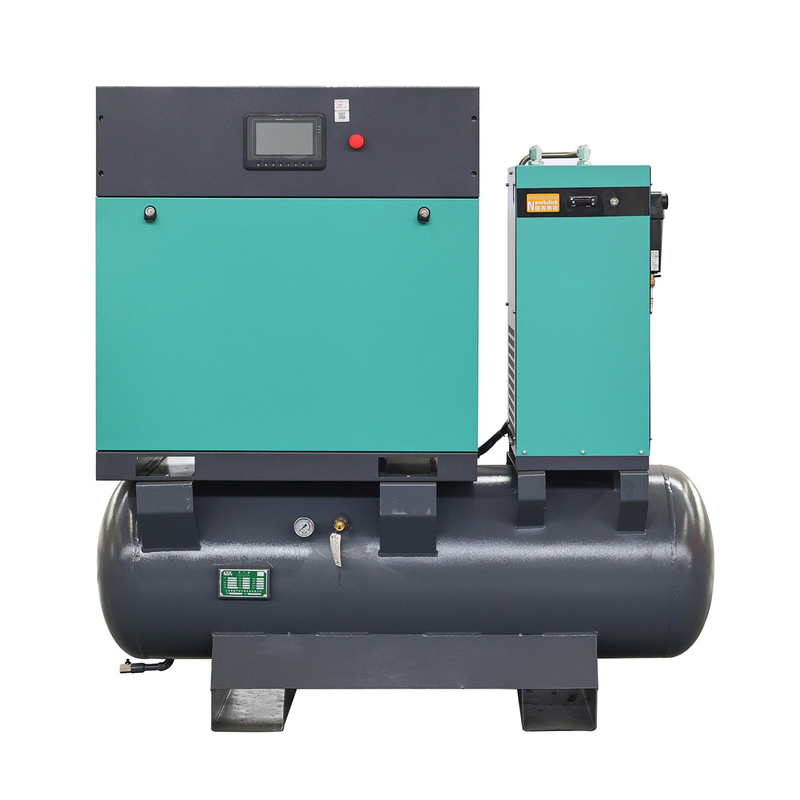

The 4 in1 Combined Screw Air Compressor (TKM Series) is an integrated high-pressure, energy-saving solution engineered to meet the strict demands of precision-focused industries. Unlike conventional standalone compressors, this model merges four core functions—stable compression, energy optimization, clean air filtration, and intelligent monitoring—into a single, compact unit. It delivers consistent performance with a maximum pressure of 1.6 Mpa, making it ideal for applications where pressure fluctuations can compromise product quality or equipment lifespan.
Available in four tailored models (TKM15-16A to TKM37-16A), the series covers motor power ranging from 15KW to 37KW, with free air delivery (FAD) varying from 1.5 m³/min to 3.7 m³/min. Each unit features dimensions spanning 17807901780 mm (smallest model) to 23009902020 mm (largest), and weights from 572Kg to 805Kg. The standard air outlet diameter is G1 (G1-1/2 for TKM37-16A), ensuring compatibility with most industrial pipelines.
Laser cutting, engraving, and marking machines require two critical inputs: stable pressure and clean air. Even minor pressure drops can cause laser beam misalignment, leading to uneven cuts or damaged workpieces. The TKM Series maintains a constant 1.6 Mpa pressure, eliminating fluctuations that disrupt precision. Additionally, its advanced oil-air separation system (stainless steel barrel) and high-quality oil filters (WD950) remove 99.9% of oil impurities and particulates, preventing laser lens contamination—a common issue that reduces lens lifespan and increases maintenance costs.
In workshops producing high-precision components (e.g., automotive parts, electronic connectors), noise and energy waste are major pain points. The TKM Series addresses this with low-noise operation (optimized air end design) and first-class energy efficiency, reducing electricity consumption by up to 15% compared to non-integrated compressors. Its compact footprint also saves valuable floor space, a critical advantage for dense workshop layouts.
Certified for top-tier energy performance, the TKM Series uses a high-efficiency screw element (the most advanced design in its class) and an IP54 motor with insulation class F (rated B for assessment) and service factors of SF=1.15/SF=1.2. This combination minimizes energy loss during operation, cutting monthly electricity bills for medium-to-large facilities by hundreds of dollars annually.
The stainless steel oil-air separation barrel ensures oil carryover is negligible, delivering clean, dry air that meets ISO 8573-1 Class 1 standards for solid particles and oil. High stability is guaranteed by a robust frame design and vibration-dampening components, reducing downtime caused by unexpected breakdowns—critical for 24/7 production environments.
The heart of the compressor is its precision-machined screw air end, which supports both single-stage and double-stage compression to adapt to varying pressure needs. The IP54 motor is dust and water-resistant, making it suitable for workshops with moderate humidity or dust levels (e.g., metal fabrication shops).
The advanced touch-screen controller features a fault warning function, real-time overall performance display, and multi-language LCD (supports English, Spanish, German, etc.), allowing operators to monitor pressure, temperature, and filter status at a glance. Automatic shutdown triggers for overheating or low oil levels prevent irreversible damage.
The WD950 oil filter traps impurities in lubricating oil, extending the oil’s lifespan by 30% and reducing the frequency of oil changes. A dedicated oil circulation system ensures consistent lubrication, even during long operating cycles.
Our certified engineers provide on-site installation, ensuring the compressor is calibrated to your facility’s voltage and pipeline specifications. We also offer hands-on training for operators, covering basic operation, daily checks, and troubleshooting.
We provide a 12-month warranty on core components (air end, motor, control panel) and offer customized maintenance plans (monthly/quarterly/annual) to keep the unit running at peak efficiency. Spare parts (filters, oil, gaskets) are delivered within 48 hours for urgent requests.
