The MULTSEA Diesel Portable Screw Compressor is a rugged, mobile air solution designed for off-grid outdoor scenarios (e.g., mining, highway construction, emergency repair).
| Quantity: | |
|---|---|
| Sub item | MODEL | SUPC50-8 | SUPC75-8 | SUPC80-10 | SUPC100-8 | SUPC110-8 | SUPC160-8 | SUPC160-13 | SUPC175-13 | ||||||
| model | Two-Wheeled | Skid container | Two-Wheeled | Skid container | Two-Wheeled | Skid container | Two-Wheeled | Two-Wheeled | Skid container | Four-Wheeled | Four-Wheeled | Skid container | Four-Wheeled | ||
| Air compressor | m³/min（cfm） | 4.5 | 6 | 5 | 8 | 8 | 13 | 10 | 10 | ||||||
| bar（psi） | 8 | 8 | 10 | 8 | 8 | 8 | 13 | 13 | |||||||
| Air Outlet Size： | G1"×2 | G1"×2 | G1"×2 | G1"×2 | G1"×2 | G1 1/2" & G1" × 1 | G1 1/2" & G1" × 1 | G1 1/2" & G1" × 1 | |||||||
| Max m | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | |||||||
| Whole machine parameters | External dimensions | L： mm | 2500 | 1800 | 2900 | 1800 | 3000 | 1920 | 2700 | 2700 | 2050 | 3000 | 3000 | 2360 | 3200 |
| W： mm | 1900 | 1150 | 1700 | 1150 | 1800 | 1565 | 1860 | 1860 | 1350 | 1890 | 1890 | 1550 | 1890 | ||
| H： mm | 1700 | 1000 | 1950 | 1050 | 2000 | 1560 | 1950 | 1950 | 1980 | 2000 | 2000 | 1780 | 2200 | ||
| Kg | 950 | 800 | 1100 | 950 | 1250 | 1100 | 1500 | 1800 | 1500 | 2600 | 2600 | 2300 | 2800 | ||
| Max km/h | 20 | - | 20 | - | 20 | - | 20 | 20 | - | 20 | 20 | - | 20 | ||
| Max° | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | |||||||
| Engine | Brand | FAWDE | FAWDE | Cummins | FAWDE | Cummins | FAWDE | Yuchai | 潍柴动力 Weichai | ||||||
| Power（kW） | 36.8 | 55 | 60 | 74 | 81 | 118 | 118 | 129 | |||||||
| Tail gas | Non-road country III | Non-road country III | Non-road country Ⅳ | Non-road countryⅢ | Non-road country III | Non-road countryⅢ | Non-road country III | Non-road country Ⅳ | |||||||
| For reference only,change without notice. | |||||||||||||||
It offers three mobile configurations (Two-Wheeled, Four-Wheeled, Skid Container) and is powered by renowned diesel engines (FAWDE, Cummins, Yuchai, Weichai). With free air delivery of 4.5-13 m³/min, pressure of 8-13 bar, and compliance with Non-road Country III/IV emission standards, it delivers stable compressed air for heavy-duty tools like shotcrete machines, anchoring drills, and mining drills. Its 20 km/h maximum speed and 15° slope capability ensure easy transfer between job sites, even in harsh terrain.
Highway slope stabilization requires shotcrete to prevent landslides, but remote slope areas lack fixed power grids. The Two-Wheeled SUPC80-10 model (5 m³/min air delivery, 10 bar pressure) solves this—it can be towed by a pickup truck to the slope site and start within 30 seconds. Its 2000m altitude adaptation ensures performance in mountainous areas, and the 10 bar pressure powers shotcrete machines to spray concrete evenly, improving slope adhesion strength by 20%.
Underground mines have narrow tunnels, low oxygen, and no power supply—requiring compact, high-power compressors. The Skid Container SUPC75-8 (6 m³/min air delivery, 8 bar pressure) is designed for this: its 1800×1150×1000 mm dimensions fit narrow tunnels, and the Cummins 60kW engine delivers reliable power in low-oxygen environments. It powers mining drills to extract ore 10-15% faster than traditional compressors, and the anti-corrosion steel frame resists rust from underground moisture.
After earthquakes or floods, road/pipeline repair needs rapid air supply. The Four-Wheeled SUPC175-13 (13 m³/min air delivery, 13 bar pressure) is self-propelled (20 km/h speed) and can reach disaster sites quickly. It powers multiple tools simultaneously (e.g., jackhammers, pipe welders), reducing emergency repair time by 25%—critical for restoring infrastructure.

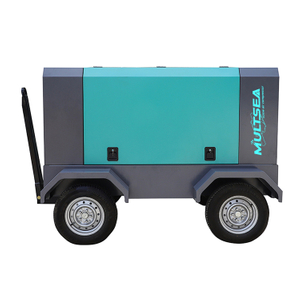

• Two-Wheeled: Lightweight (800-1250kg), towable by small vehicles—ideal for short-distance transfers (e.g., between highway construction sections).

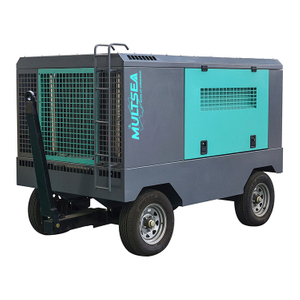

• Four-Wheeled: Self-propelled with SUV-grade tires, 20 km/h speed—suitable for long-distance site transfers (e.g., between mining areas).
• Skid Container: Fixed on steel skids, liftable by cranes—perfect for underground mines or ships (no need for towing space).
Engines are sourced from top brands:
• FAWDE (36.8kW) for entry models (SUPC50-8)
• Cummins (60kW) for mid-range models (SUPC80-10)
• Weichai/Yuchai (129kW) for high-power models (SUPC175-13)
All meet Non-road Country III/IV standards, reducing NOx and particulate emissions by 40% compared to old-generation engines—compliant with environmental rules in forest or urban peripheries.
The frame uses Q345 high-strength steel with anti-corrosion coating, resisting rust in rainy/humid conditions. It operates at -25°C to 45°C (TUV Rheinland certified) and adapts to 2000m altitudes—suitable for northern winter construction or plateau mining. The fuel tank is leak-proof, with a capacity of 150-300L for 6-10 hours of continuous use.
Q1: How long does a full tank of diesel last?
A1: It depends on the model and load. The SUPC75-8 (55kW) runs 8-10 hours at 70% load with a 150L tank; the SUPC175-13 (129kW) runs 6-8 hours at full load with a 300L tank. An optional 500L tank supports 24-hour operation.
Q2: Is on-site maintenance easy?
A2: Yes—key components (air/oil/fuel filters) are accessible via side hatches. The control panel has a maintenance reminder, and we provide a portable tool kit for on-site filter/oil replacement (no professional skills needed).
Q3: Can it power multiple tools at once?
A3: Models with ≥8 m³/min air delivery (e.g., SUPC100-8) power 2-3 shotcrete machines or 4-5 drills simultaneously, thanks to ±0.2 bar pressure stability. We offer custom manifolds for more tools.
Q4: What’s the maximum slope it can climb?
A4: 15° for standard models—enough for most slopes. An optional traction assist kit handles 15-20° slopes (e.g., steep mine ramps).
