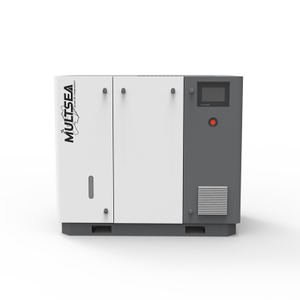

Many small-to-medium factories, auto repair shops, and food processing facilities face critical pain points with conventional air compressors: complicated installation (requiring separate dryers, filters, and air tanks), excessive floor space occupation, and scattered maintenance that increases downtime. Our Integrated Screw Compressor addresses these issues by integrating a high-efficiency screw airend, refrigerated dryer, precision filter, and vertical air tank into one compact unit. It eliminates the need for tedious pipeline connection between components, saves over 40% of installation space, and reduces maintenance workload by centralizing key parts—ideal for scenarios where space and operational efficiency are priorities.
| Quantity: | |
|---|---|
| Model | AT-10HP | AT-20PH | AT-30HP |
| Motor Power | 7.5 | 15 | 22 |
| Capacity/Pressure(㎡/min/MPa) | 1.1/0.8 | 2.25/0.8 | 3.6/0.8 |
| 1.0/1.6 | 2.0/1.6 | ||
| Tank（L） | 400 | 400 | 500 |
| Lenght(mm) | 1450 | 1780 | 1840 |
| Width(mm) | 650 | 750 | 740 |
| Height(mm) | 1500 | 1730 | 1730 |
| Weight(Kg) | 550 | 600 | 650 |
All-in-One Integration: No external dryer/filter/tank needed—unbox, connect power, and start using within 1 hour.
Energy Efficiency: Equipped with IE3 premium efficiency motor, reducing energy consumption by 15-20% compared to ordinary compressors.
Air Quality Assurance: Multi-stage filtration (up to 0.01μm) and optional desiccant dryer (dew point ≤-40℃) meet food-grade and electronic-grade air requirements.
Auto Repair Shops: Compact size fits in limited workshop corners; stable 8bar pressure powers impact wrenches and paint sprayers without frequent tank refilling.
Food Processing Plants: Oil-free optional design + high-precision filtration prevents air contamination, complying with FDA standards for packaging and processing.
Small Electronic Factories: Low noise (≤72dB(A)) avoids disrupting sensitive component assembly, while clean air protects circuit boards from dust damage.
Structural Design: Cold-rolled steel casing with anti-corrosion powder coating—resists oil stains and humidity, suitable for long-term use in workshops.
Control System: 7-inch touchscreen PLC panel displays real-time pressure, temperature, and filter life; supports automatic start/stop based on air demand to save energy.
Maintenance Access: Wide-opening side doors expose all key components (filter, dryer, oil level gauge); filter replacement takes less than 5 minutes, minimizing downtime.
Pre-Sale: Free on-site assessment to recommend the right model based on your air demand (m³/min) and pressure requirements.
Installation: Professional team provides on-site installation and commissioning, with a 1-hour training session for your operators.
Warranty: 2-year warranty for the screw airend, 1-year warranty for the entire unit, and lifetime free technical consultation.
Spare Parts: Global spare parts warehouse ensures delivery of filters, oil, and gaskets within 3-5 working days.
