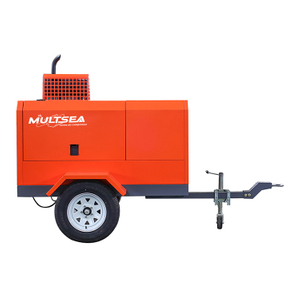

High protection motor: The entire series adopts IP54, F-insulated E2, IE3 standard motors, which are efficient and energy-saving.
High efficiency adjustable intake valve, more in line with the construction operation habits of on-site workers.
● High performance air compression host, equipped with advanced screw rotor components, using 4-6 SKF bearings to ensure large air output and longer service life
Air separation and filtration device: adopting a higher requirement oil and gas separation system to reduce the oil content in the air,
● Axle and frame: Road version axle system with SUV grade tires for more reliable and stable driving.
High protection motor: The entire series adopts IP54, F-insulated E2, IE3 standard motors, which are efficient and energy-saving.
High efficiency adjustable intake valve, more in line with the construction operation habits of on-site workers.
● High performance air compression host, equipped with advanced screw rotor components, using 4-6 SKF bearings to ensure large air output and longer service life
Air separation and filtration device: adopting a higher requirement oil and gas separation system to reduce the oil content in the air,
● Axle and frame: Road version axle system with SUV grade tires for more reliable and stable driving.
Model | AT 75A |
Compression | Normal state |
Gases | Air |
No. of compression stage | Two stage |
Atmospheric pressure | 1.033Kg/cm2A |
Cooling Way | Air Cooling |
Environment temp | ≤46°C |
Relative humidity | 80% |
Discharge pressure | 0.8 Mpa |
Volume Flow | 12.5 m³/min |
Driving Way | Driven shaft coupling |
Power | 55 Kw /IP54 |
Horsepower | 75 HP |
Voltage / ( Frequency) | 380 V1 50 Hz |
Starting Method | Star-△ |
Motor Speed | 1500 rpm/min |
Insulation grade | F |
Outlet Size | G1-1/2 & G1 |
Size | 2700*1700*1900 mm |
Weight | 1500 Kg |
Noise Leve | 80-82+3 dB (A) |
Oil contents | ≤3-5 ppm |
Model | AT 75A |
Compression | Normal state |
Gases | Air |
No. of compression stage | Two stage |
Atmospheric pressure | 1.033Kg/cm2A |
Cooling Way | Air Cooling |
Environment temp | ≤46°C |
Relative humidity | 80% |
Discharge pressure | 0.8 Mpa |
Volume Flow | 12.5 m³/min |
Driving Way | Driven shaft coupling |
Power | 55 Kw /IP54 |
Horsepower | 75 HP |
Voltage / ( Frequency) | 380 V1 50 Hz |
Starting Method | Star-△ |
Motor Speed | 1500 rpm/min |
Insulation grade | F |
Outlet Size | G1-1/2 & G1 |
Size | 2700*1700*1900 mm |
Weight | 1500 Kg |
Noise Leve | 80-82+3 dB (A) |
Oil contents | ≤3-5 ppm |
The slope support on both sides of the highway is equipped with shotcrete machines and anchoring drilling machines, and can also be used for mining, as well as supporting equipment such as downhole drilling vehicles. |
The slope support on both sides of the highway is equipped with shotcrete machines and anchoring drilling machines, and can also be used for mining, as well as supporting equipment such as downhole drilling vehicles. |
