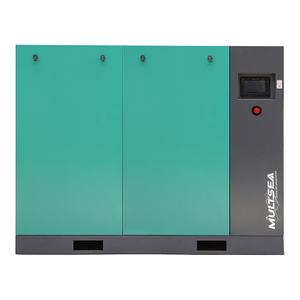

General manufacturing (electronics, packaging, furniture), laboratories, and commercial facilities often struggle with "one-size-fits-all" air compressors: either they are too powerful (wasting energy for small-scale use) or lack adaptability (failing to meet varying pressure needs). Our Stationary Screw Compressor solves these issues with flexible pressure options, energy-saving designs, and low-noise operation. It provides stable, clean air for diverse applications—from electronic component cleaning to packaging machine inflation—without compromising efficiency or adaptability.
| Quantity: | |
|---|---|
| Model | AT-10HP | AT-15HP | AT-20HP | AT-30HP | AT-50HP | AT-60HP |
| Motor Power | 7.5 | 11 | 15 | 22 | 37 | 45 |
| 1.2/0.7 | 1.71/0.7 | 2.3/0.7 | 3.8/0.7 | 6.4/0.7 | 8.5/0.7 | |
Capacity/Pressure (m³/min/MPa) | 1.1/0.8 | 1.65/0.8 | 2.25/0.8 | 3.6/0.8 | 6.2/0.8 | 8.0/0.8 |
| 0.9/1.0 | 1,32/1.0 | 1.8/1.0 | 3.0/1.0 | 5.6/1.0 | 7.5/1.0 | |
| 0.8/1.2 | 1.1/1.2 | 1.6/1.2 | 2.6/1.2 | 5.0/1.2 | 7.0/1.2 | |
| Lubricating oil(L) | 12 | 16 | 16 | 22 | 26 | 26 |
| Noise db(A) | 60-70±2 | 60-70±2 | 60-70±2 | 60-70±2 | 60-70±2 | 60-70±2 |
| Length(mm) | 780 | 1050 | 1050 | 1300 | 1470 | 1460 |
| Width(mm) | 600 | 700 | 700 | 850 | 1000 | 1000 |
| Height(mm) | 1020 | 1150 | 1150 | 1100 | 1380 | 1380 |
| Weight(Kg) | 215 | 335 | 335 | 465 | 630 | 825 |
| Model | AT-75HP | AT-100HP | AT-125HP | AT-150HP | AT-175HP | AT-200HP |
| Motor Power | 55 | 75 | 90 | 110 | 132 | 160 |
| 10.5/0.7 | 13.2/0.7 | 16.2/0.7 | 21.0/0.7 | 24.6/0.7 | 31.0/0.7 | |
Capacity/Pressure (m³/min/MPa) | 10.0/0.8 | 13.0/0.8 | 15.8/0.8 | 20.0/0.8 | 23.0/0.8 | 30.0/0.8 |
| 8.5/1.0 | 10.9/1.0 | 14.0/1.0 | 18.0/1.0 | 21.0/1.0 | 26.0/1.0 | |
| 7.6/1.2 | 9.8/1.2 | 12.8/1.2 | 16.0/1.2 | 18.8/1.2 | 22.0/1.2 | |
| Lubricating oil(L) | 54 | 54 | 72 | 90 | 90 | 90 |
| Noise db(A) | 70-76±2 | 70-76±2 | 70-76±2 | 70-76±2 | 70-76±2 | 70-76±2 |
| Length(mm) | 1900 | 1900 | 1900 | 2020 | 2020 | 2360 |
| Width(mm) | 1250 | 1250 | 1250 | 1590 | 1590 | 1610 |
| Height(mm) | 1600 | 1600 | 1600 | 1810 | 1810 | 1860 |
| Weight(Kg) | 1130 | 1230 | 1325 | 1520 | 1710 | 1850 |
Versatile Pressure Ranges: Adjustable working pressure (8-13bar) to match different applications—e.g., 8bar for packaging, 13bar for heavy-duty fastening tools.
Dual Cooling Options: Air-cooled models for standard workshops; water-cooled models for high-temperature environments (e.g., foundries), ensuring consistent performance.
Energy-Saving Upgrade: Compatible with VFD (Variable Frequency Drive) retrofits—automatically adjusts motor speed based on air demand, cutting energy costs by 25-30% for intermittent use.
Electronic Manufacturing: STAT15-8’s low noise (≤70dB(A)) and 0.1μm precision filter prevent noise interference and dust contamination, protecting sensitive chips and circuit boards.
Packaging Industry: STAT22-10’s stable 8bar pressure ensures uniform inflation of plastic films and secure sealing of cartons, reducing packaging defects by 18%.
Laboratories: STAT45-13’s water-cooled system maintains constant temperature (±2℃), and oil-free optional design meets ISO 8573-1 Class 0 air quality standards for analytical instruments.
Control Interface: Intuitive digital display with LED indicators—shows pressure, temperature, and filter replacement reminders; supports remote monitoring via mobile APP (optional) for unattended workshops.
Space Optimization: Compact vertical design (height ≤1350mm) fits under workshop mezzanines or in small equipment rooms; removable side panels allow easy access to components.
Air Quality: Equipped with triple filtration (coalescing filter + activated carbon filter + precision filter)—removes oil, water, and particles, ensuring air quality meets industrial standards.
Energy Audit: Free pre-sale energy analysis to recommend the most cost-effective model (e.g., VFD-equipped STAT22-10 for intermittent packaging use).
Installation: Fast on-site installation (2-3 hours for air-cooled models) and pipeline layout guidance to minimize disruption to your production.
Warranty: 2-year warranty for the entire unit, 3-year warranty for the screw airend, and free replacement of filters within the first 6 months.
Spare Parts: Localized spare parts centers in major industrial zones—guarantees same-day dispatch of common parts (filters, oil) and next-day delivery.
