Product Advantage
First-class Energy Efficiency
Clean Gas
High Stability
Low Noise and Quietness
Technical Parameters
MODEL | POWER | PRESSURE | FREE AIR DELIVERY | WEIGHT | Dimension | Air Outlet Pipe Diamater |
(Kw) | (Mpa) | (m³/min) | (Kg) | (L*W"H) | (inch) | |
TKM15-16A | 15 | 1.6 | 1.5 | 572 | 1780*790*1780 | G1 |
TKM22-16A | 22 | 1.6 | 2.6 | 630 | 1840*860*1785 | G1 |
TKM30-16A | 30 | 1.6 | 3.1 | 701 | 1840*860*1785 | G1 |
TKM37-16A | 37 | 1.6 | 3.7 | 805 | 2300*990*2020 | G1-1/2 |

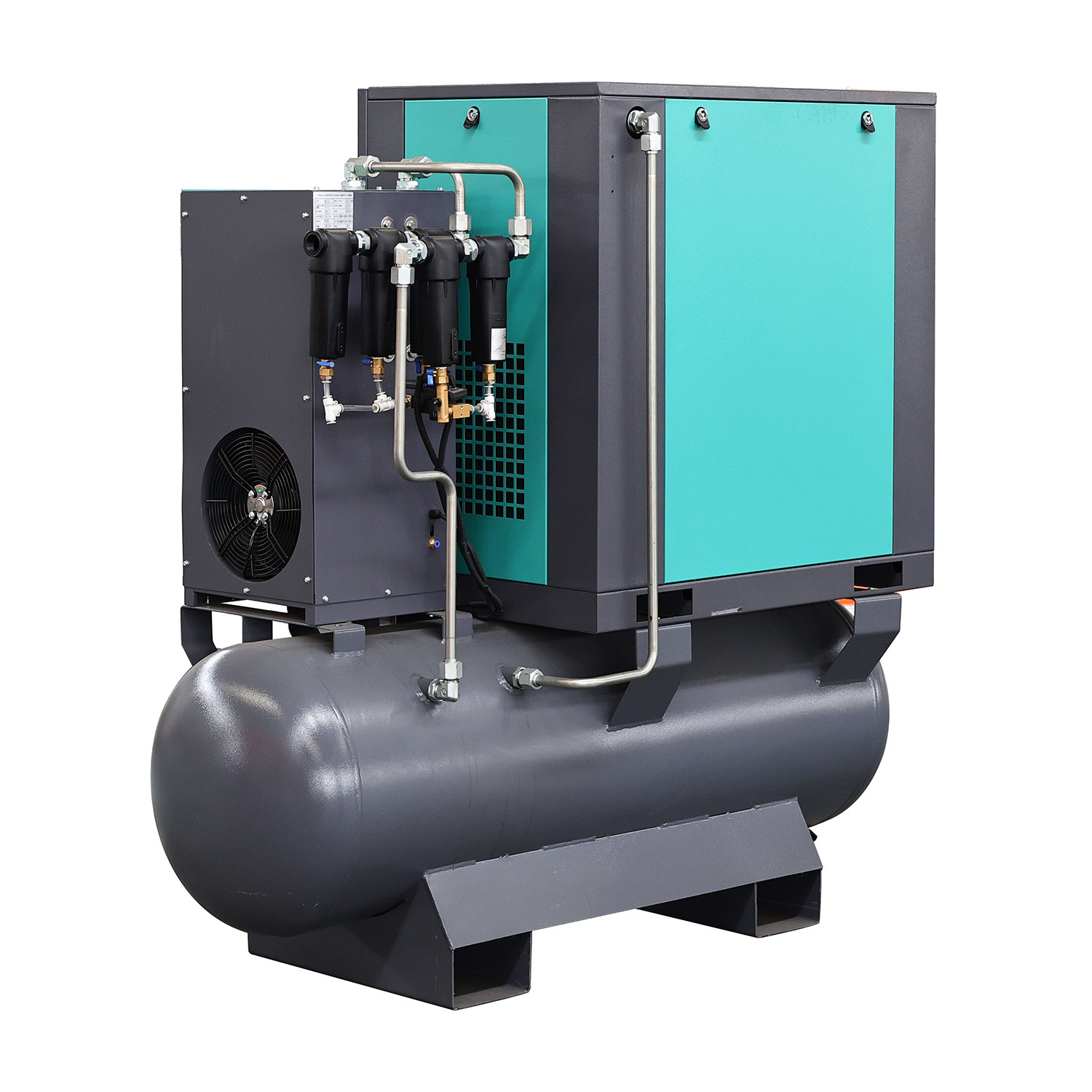

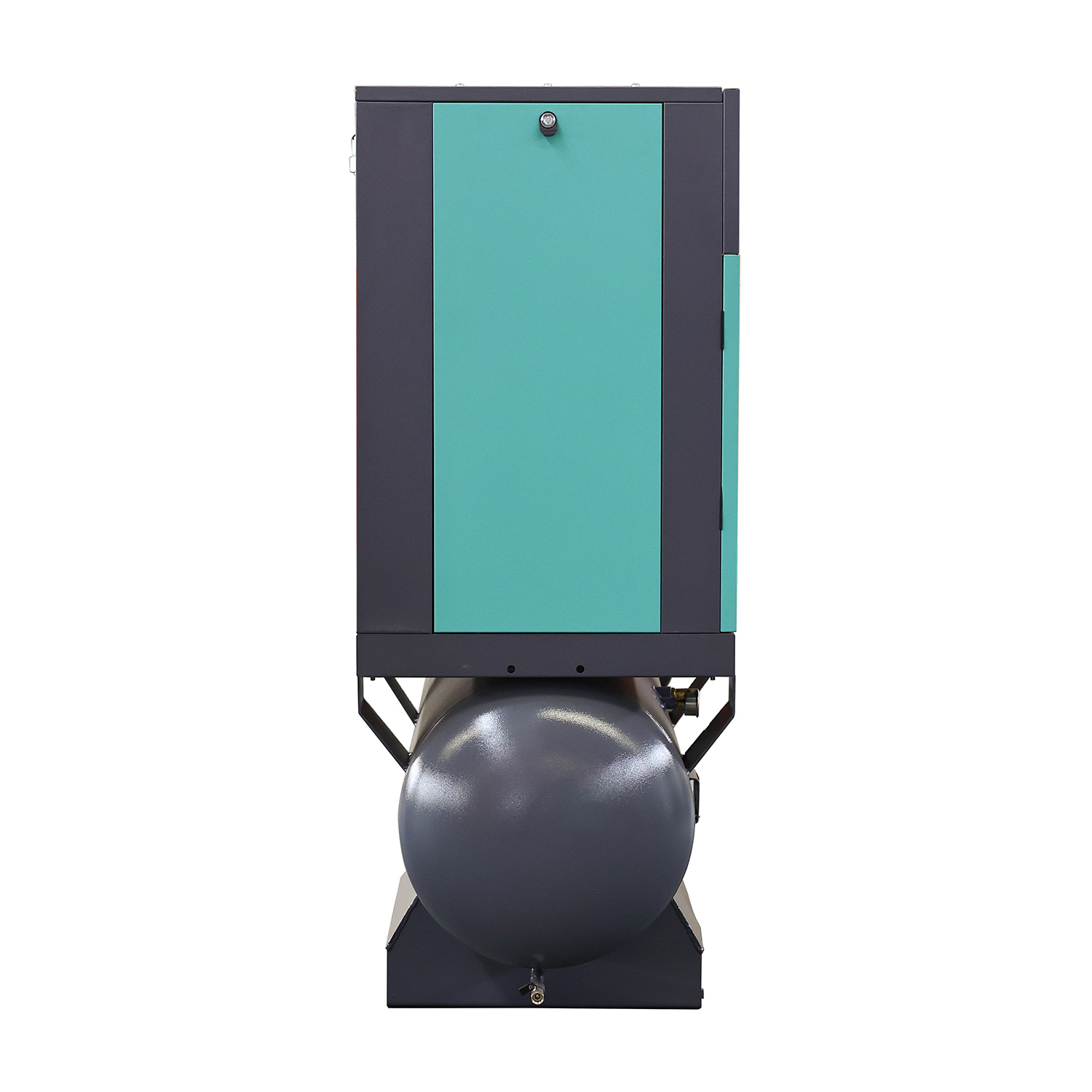

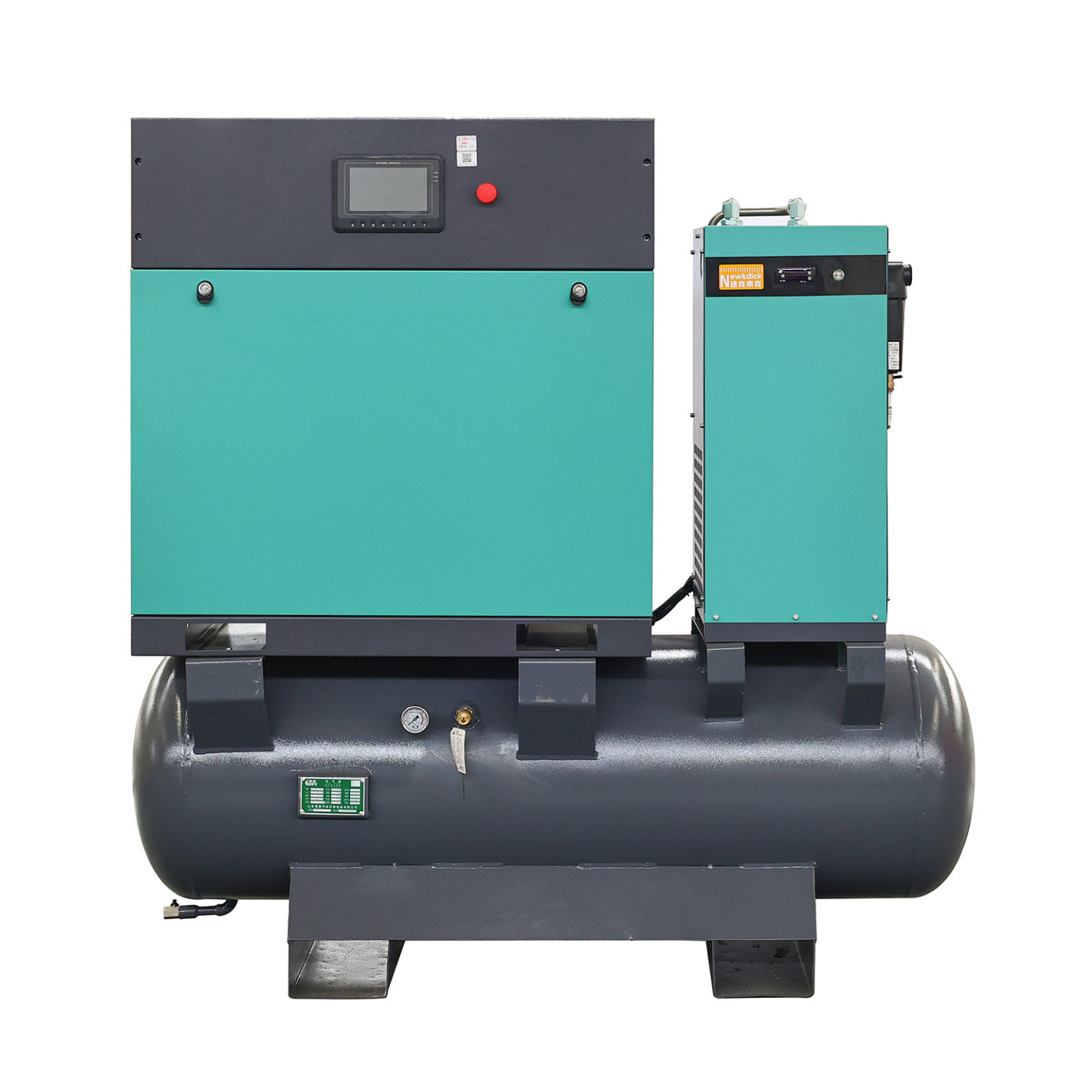

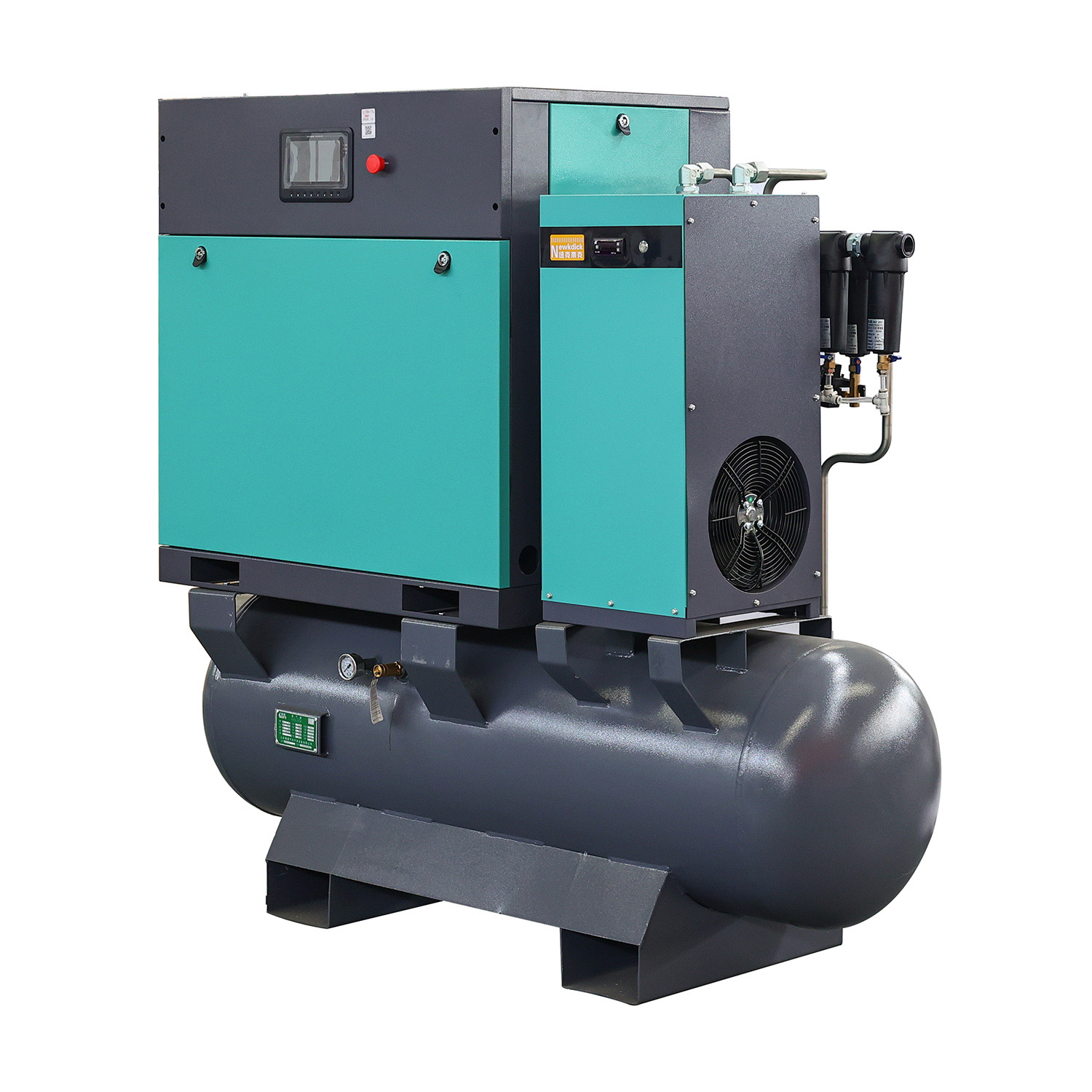

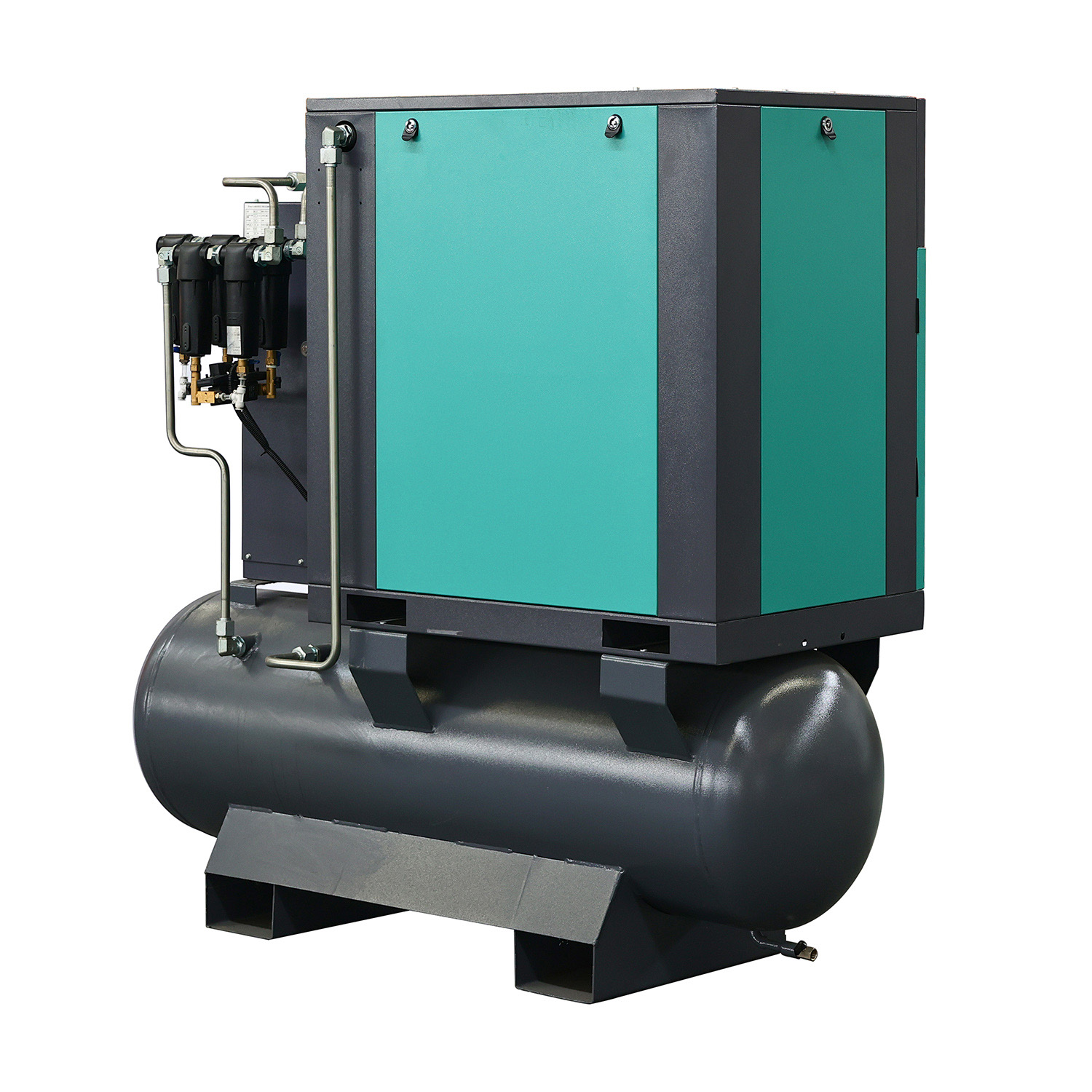

Detail photo
Product Uses
Used with laser machine tools.
