TA22
MULTSEA
| Size: | |
|---|---|
| Quantity: | |

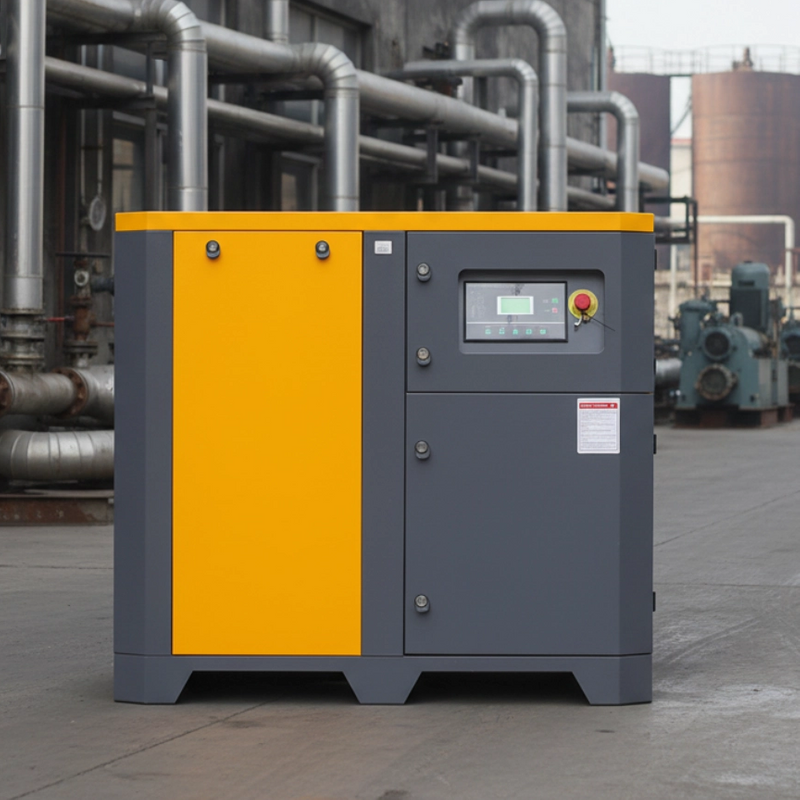

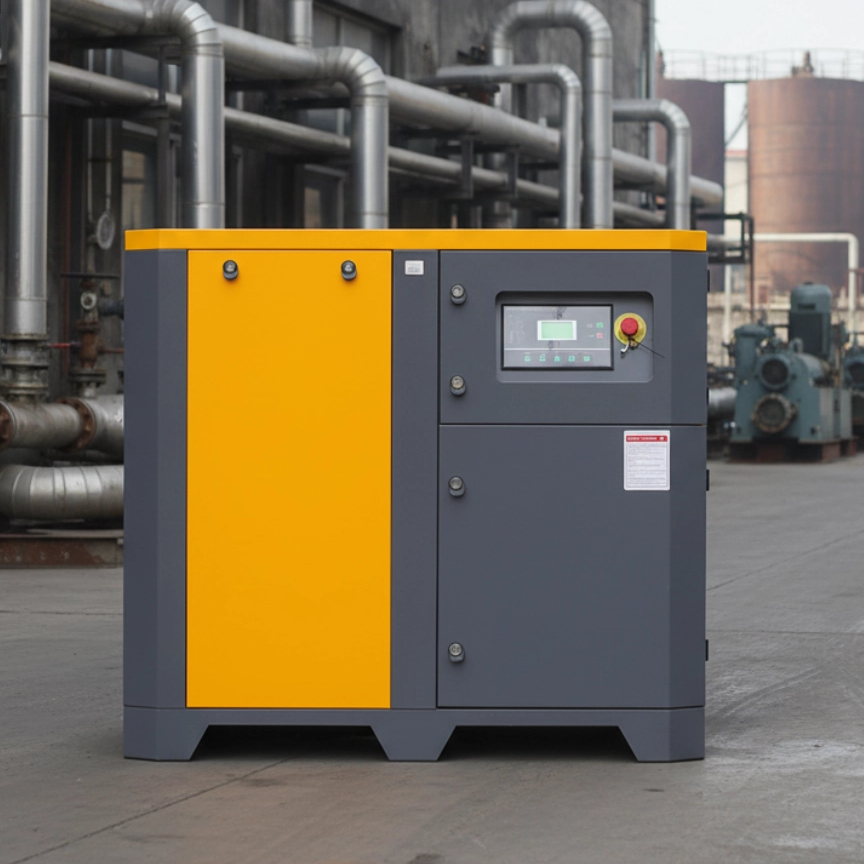

The TA22 provides a fixed speed compressed air option for industrial users. Its power rating and pressure-specific airflow make it easier to compare the model with other compressor sizes.
The TA22 delivers 3.8 m³/min at 0.8 MPa, 2.8 m³/min at 1.0 MPa, and 2.6 m³/min at 1.25 MPa. Select the operating pressure based on the requirements of your pneumatic equipment.
This 22kW air compressor can be considered for production equipment and workshop processes with compatible air demand. Check peak consumption and whether multiple machines operate at the same time.
The model uses air cooling, with a listed ambient temperature range of -5°C to 45°C. Its dimensions are 1300 × 850 × 1165 mm, and its weight is 465 kg.
Provide your pressure, airflow, voltage, and application details to discuss whether the TA22 is suitable for your compressed air system.
